Reverse Idler Gear, Removing and Installing

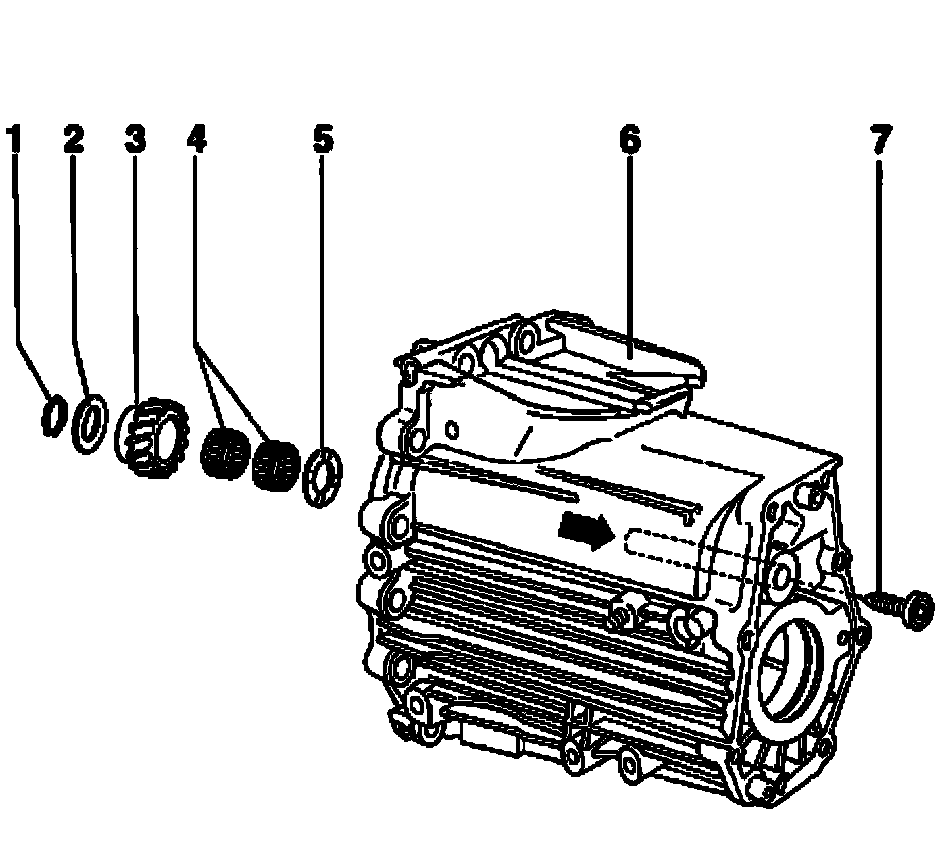

Reverse idler gear, removing and installing, 01A, 5 SPD. M/T (AWD)





1. Circlip
2. Support metal
3. Reverse idler gear
^ Various versions, allocation

4. Needle bearing
5. Thrust washer
6. Transmission cover
^ With reverse idler gear shaft - arrow -.
^ Shaft for reverse idler gear does not need to be removed to remove reverse idler gear
^ Shaft for reverse idler gear is not available as a replacement part
^ Coat sealing surfaces thinly with sealant AMV 188 00102

7. TORX bolt, 25 Nm
^ Serves as additional securing element for reverse idler gear shaft
