Reinforcement Measures, As of Transmission Manufacture Date 17 08 8 In Area of 4TH-Gear Gear Wheel

Reinforcement measures, as of transmission manufacture date 17 08 8 in area of 4th-gear gear wheel, 01A, 5 SPD. M/T (AWD)

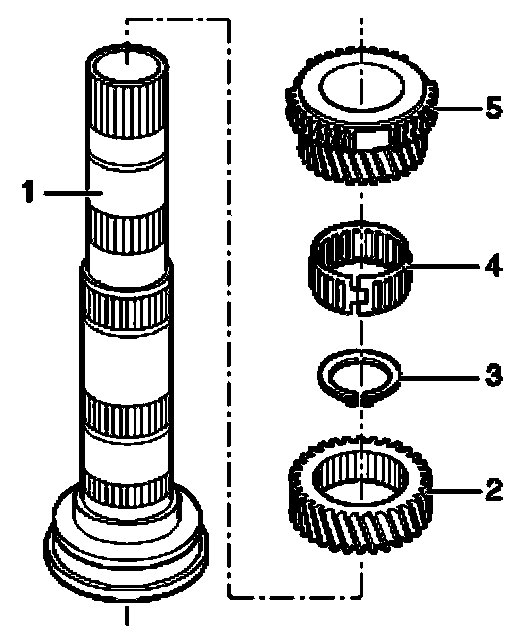

These modifications affect the following components:
1. Hollow shaft, distinguishing characteristics
2. 4th-gear gear wheel, distinguishing characteristics
3. Circlip, distinguishing characteristics
4. Needle bearing, distinguishing characteristics
5. 5th gear sliding gear, distinguishing characteristics

Note:
^ Under no circumstances may parts of the transmission with reinforced 4th gear be installed interchanged with those of transmission with not reinforced 4th gear

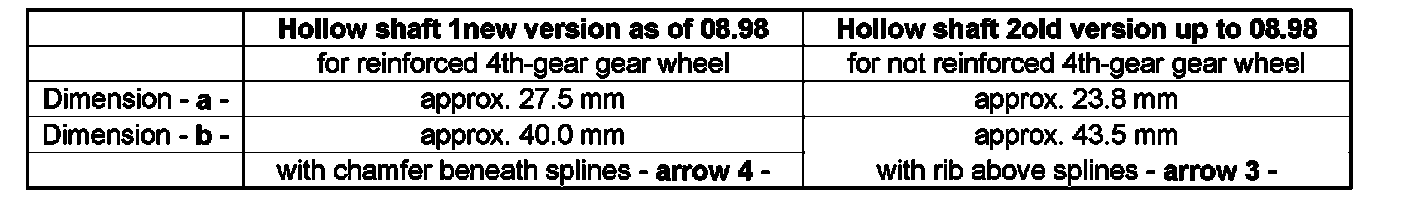

Distinction between hollow shafts

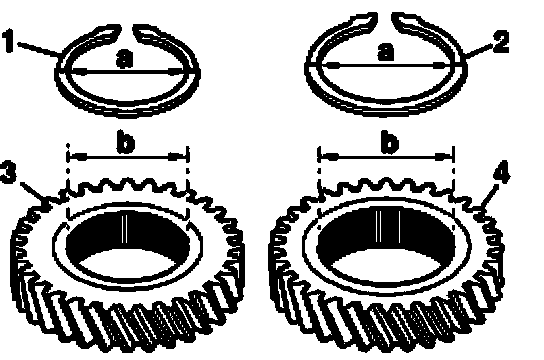

Distinction between circlips and gear wheels

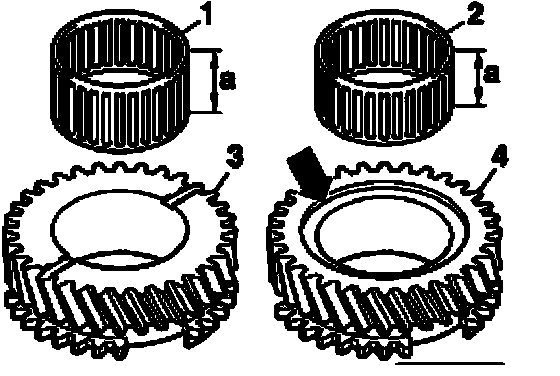

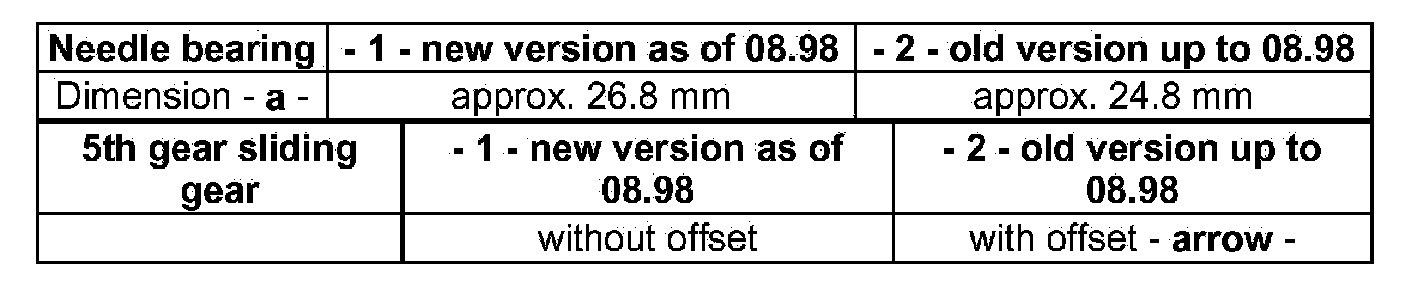

Distinction between needle bearings and sliding gears for 5th gear
