Transmission Overview

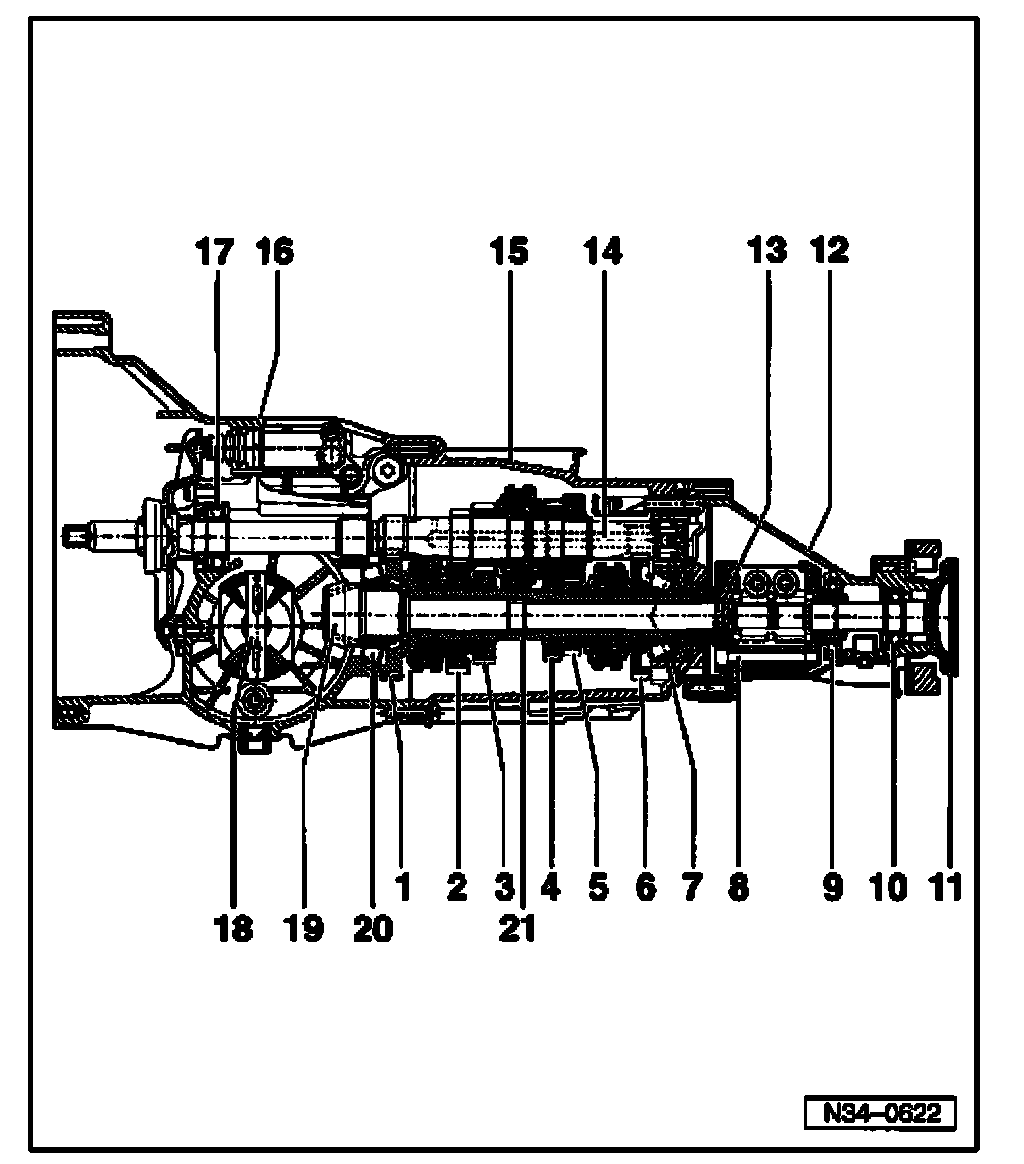

Transmission overview, 01A, 5 SPD. M/T (AWD)





1. 1st Gear
2. 2nd Gear
3. 3rd Gear
4. 4th Gear
5. 5th Gear
6. Reverse Gear
7. Tapered roller bearing
8. Torsen differential
9. Ball bearing
10. Ball bearing
11. Drive flange
12. Cover for Torsen differential
13. Compression spring
^ Between Torsen differential and hollow shaft

14. Input shaft
15. Transmission cover
16. Transmission housing
17. Ball bearing
18. Differential
19. Pinion shaft (output shaft)
20. Radial tapered roller bearing
21. Hollow shaft
