Input Shaft, Pinion Shaft, Hollow Shaft, Shift Rods, Transmission Cover and Cover With Torsen Differential, Removing and Instal

Input shaft, pinion shaft, hollow shaft, shift rods, transmission cover and cover with Torsen differential, removing and installing, 01A, 5 SPD. M/T (AWD)

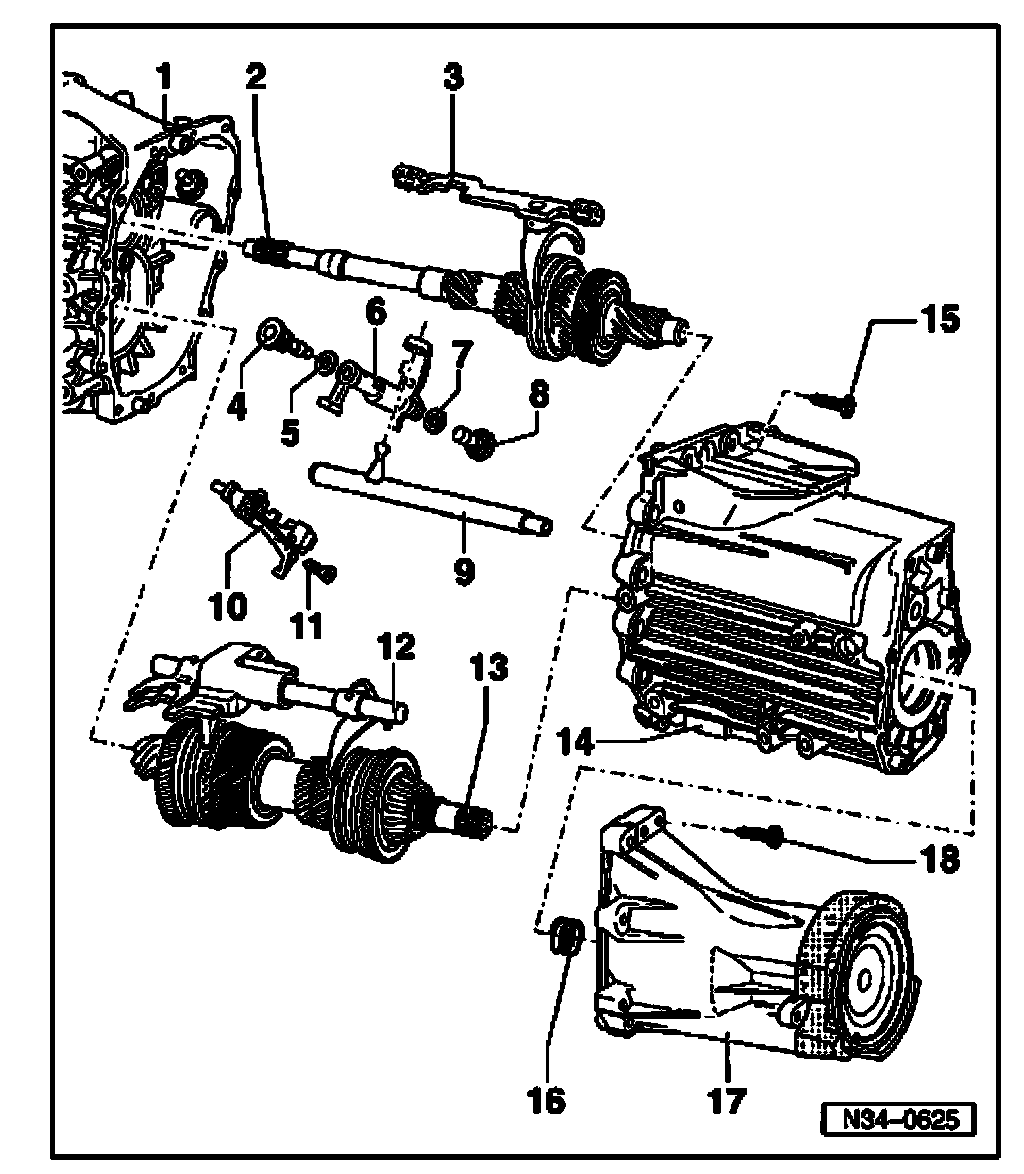

1. Transmission housing
2. Input shaft
^ Servicing bearing for input shaft

3. Shift rod with shift fork for 3rd and 4th gear
^ Replacing bushings

4. Left stop screw, 40 Nm
5. Washer
6. Relay shaft
^ Installed position

7. Washer
8. Right stop screw, 40 Nm
9. Shift rod
^ Installation position
^ Shift rod seal, replacing

10. Shift detent
^ Installation position

11. Torx bolt, 25 Nm
^ With shoulder to secure shift detent spring

12. Shift rod with shift fork for 1st/2nd/5th and reverse gear
^ Replacing bushings

13. Pinion shaft with hollow shaft
^ Servicing bearing for pinion shaft and hollow shaft

14. Transmission cover
^ Oil collector tray, removing and installing

15. Torx bolt, 25 Nm
16. Compression spring
17. Cover with Torsen differential
18. Torx bolt, 25 Nm





Oil collector tray, removing and installing

Removing
^ Oil collector tray must be rotated and then pulled out.

Installing

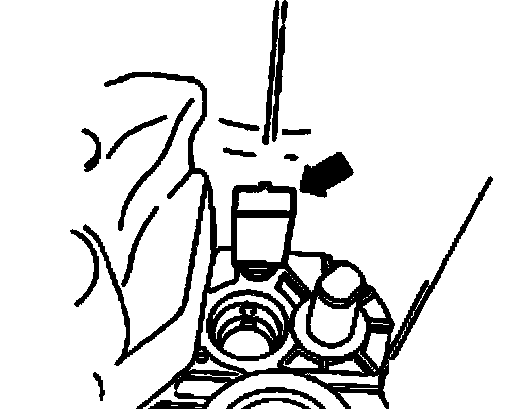

Installation position:

Oil collector tray points upward in transmission cover.
^ Push oil collector tray into transmission, until it snaps in.
