Ball Bearing For Input Shaft, and Multi-Function Sensor, Removing and Installing

Ball bearing for input shaft, and multi-function sensor, removing and installing, 01A, 5 SPD. M/T (AWD)

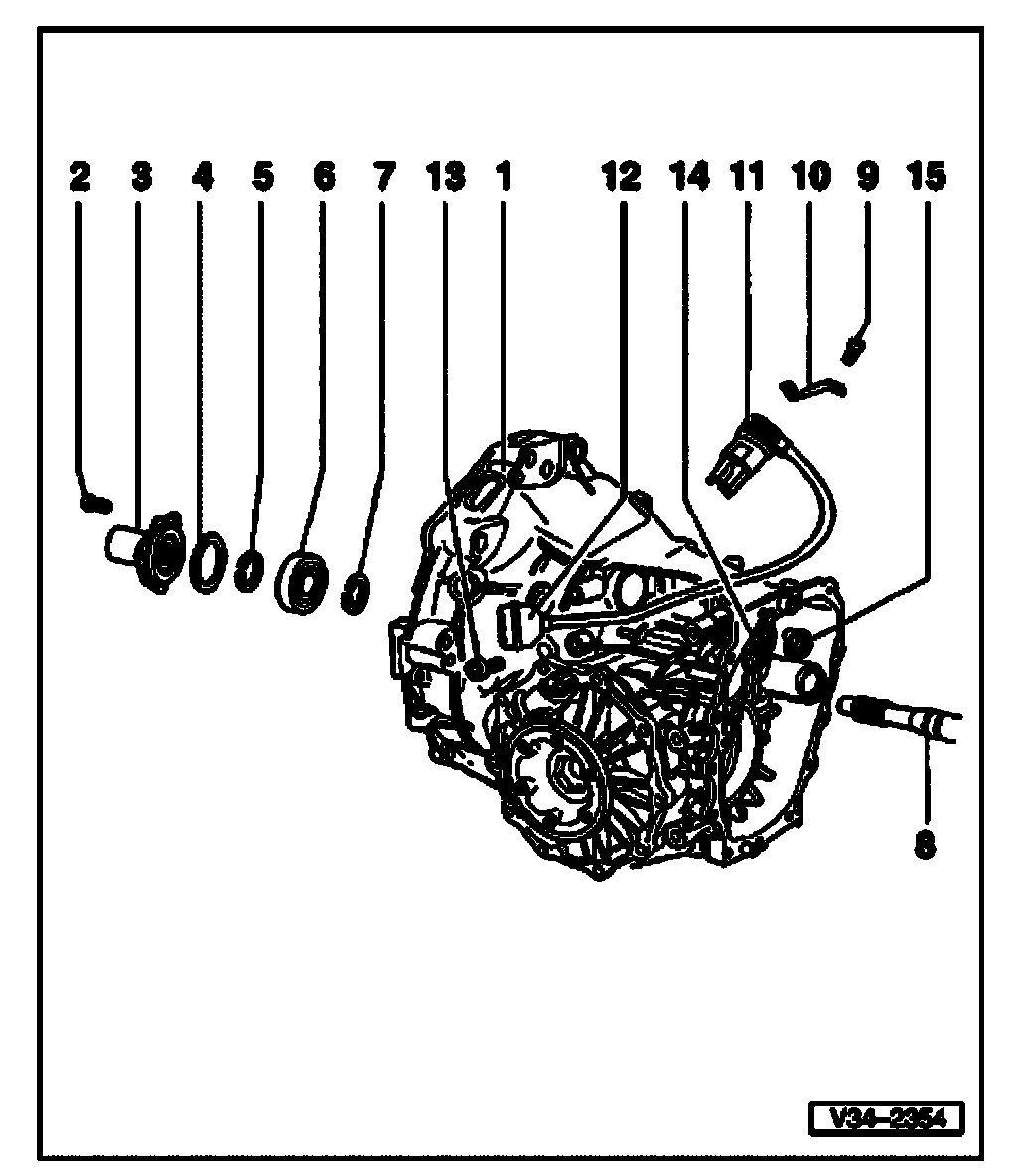

1. Transmission housing
^ With differential and flange shafts
^ Differential and flange shafts, removing and installing
^ Sensor and sensor wheel for speed sensor, replacing
^ Breather installation position
^ Breather made of different materials for transmissions made of aluminum and magnesium
^ Allocate according to Electronic Parts Catalog (ETKA)

2. Inner Torx bolt
^ Self-locking
^ Always replace
^ Black; only for aluminum transmissions
^ Shiny; for transmissions made of aluminum and of magnesium
^ For aluminum transmissions
^ 35 Nm
^ For magnesium transmissions
^ 25 Nm

3. Guide sleeve
^ Guide sleeve made of different materials for transmissions made of aluminum and magnesium

4. Curved washer
^ Small diameter facing guide sleeve (convex side)

5. Circlip
6. Ball bearing
7. Circlip
8. Input shaft
^ Servicing bearing for input shaft

9. Bolt
^ Black; only for aluminum transmissions
^ Shiny; for transmissions made of aluminum and of magnesium
^ For aluminum transmissions
^ 25 Nm
^ For magnesium transmissions
^ 15 Nm

10. Locking plate
^ For multi-function sensor
^ Securing plate made of different materials for transmissions made of aluminum and magnesium

11. Multi-function sensor
12. Connector for multi-function sensor
13. Bolt, 10 Nm
14. Cover for shift rod
15. Gear lock

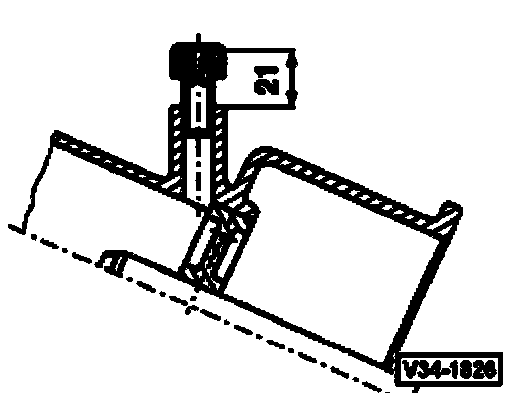

Breather installation position
The breather must protrude 21 mm out of housing after pressing in.
