Flywheel: Service and Repair

Drive plate, removing and installing
Special tools and equipment

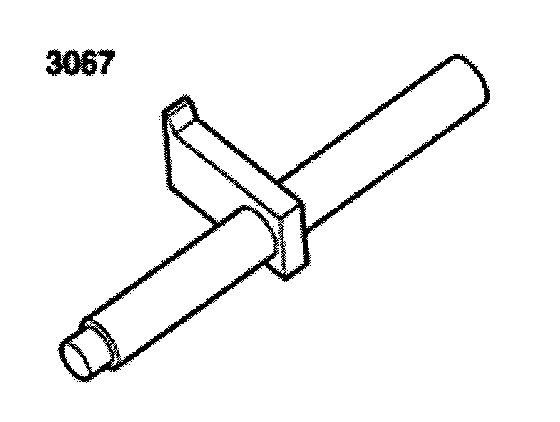

^ 3067 counterhold
^ Depth gauge





Loosening and tightening drive plate

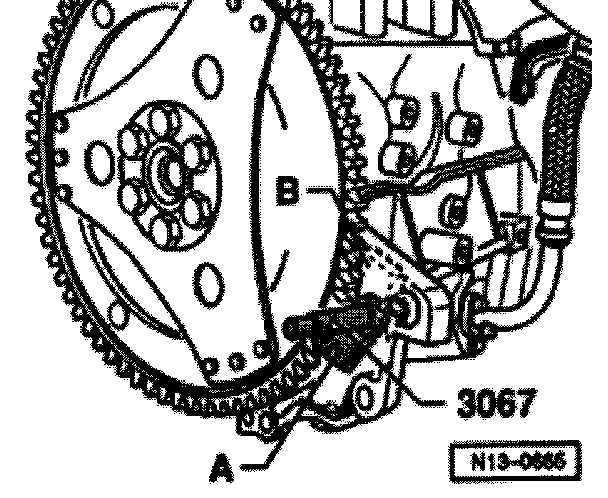

- Re-position 3067 retainer to loosen and tighten bolts.
Installation position of flywheel lock adapter.
A- to loosen
B- to tighten

Installing drive plate

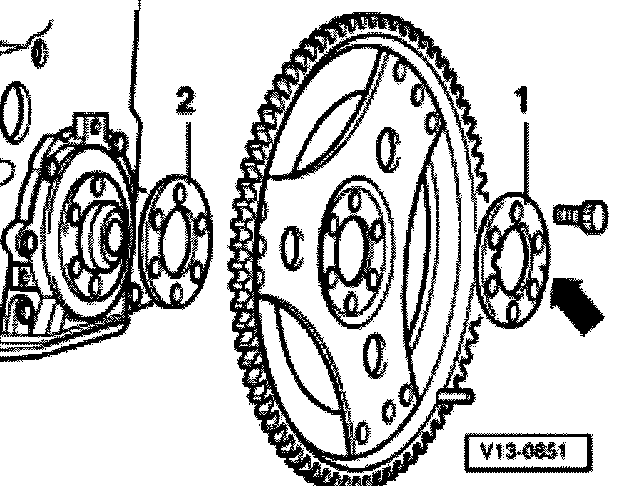

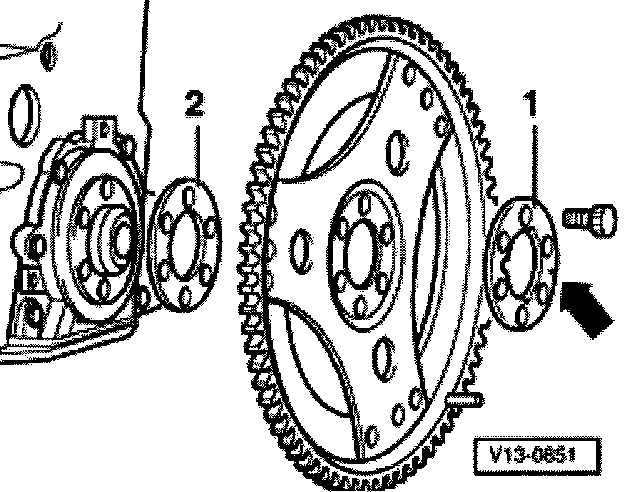

- Position drive plate using grooved washer-1-.
- Insert new bolts and tighten to 30 Nm.

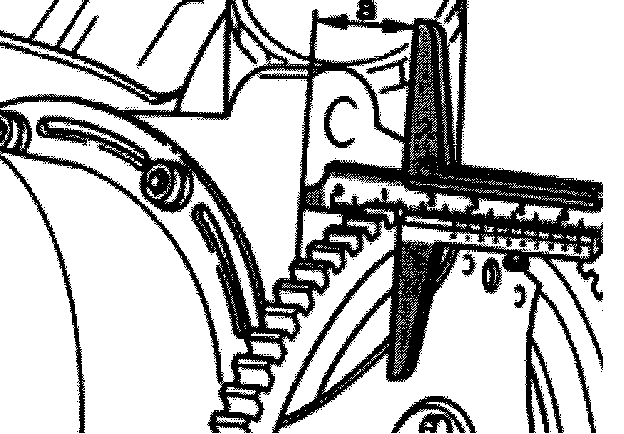

- Measure distance -a- at three places and calculate mean.
Specification: 26 to 28 mm

Note: The measurement fakes place on the milled surface of the cylinder block.

If measured value is less than specified value:





- Remove drive plate again and use spacer washer-2-. Tighten bolts to 30 Nm again.
- Tighten bolts to 60 Nm and turn an additional 90° (1/4 rotation, additional rotation may occur in several stages).
