Wheel Bearing Housing/Tie Rod End, Modified

Wheel bearing housing/tie rod end, modified

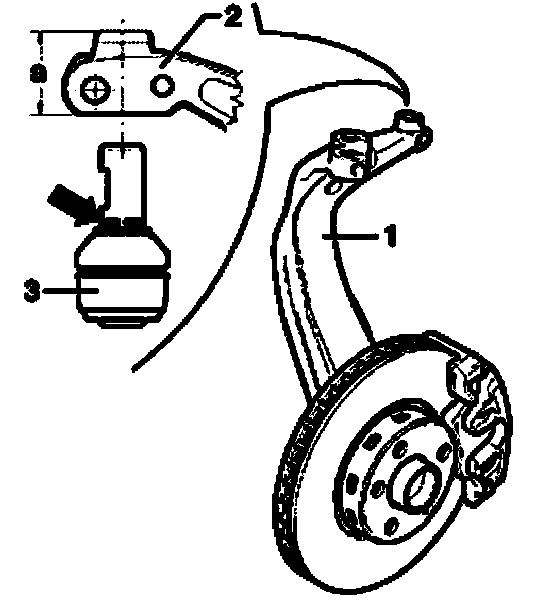

The wheel bearing housing - 1 - was modified in the area of the tie rod end - 2 - mounting.

Measurement a; up to 32 mm

Measurement a; new 30 mm

As a replacement part, the wheel bearing housings are now delivered only with the modified mounting 30 mm for the tie rod end.

3 - Tie rod end

With wire ring - arrow -

Only this tie rod end is now supplied as a replacement part.

The tie rod end with wire ring can also be attached to a wheel bearing housing with (measurement a; 32 mm).

The toe adjustment range is reduced by approximately 2 mm with this combination.

If toe adjustment range for toe-in curve is not sufficient, the wire ring - arrow - can be removed.
