Sealing Rings For Flanged Shafts, Replacing (Rear Final Drive Installed)

Sealing rings for flanged shafts, replacing (rear final drive installed), 01V, 5 SPD. A/T (AWD)
^ Observe general repair notes.

All illustrations show the left side of the rear final drive. Removing and installing flanged shaft and oil seal on right side is identical.

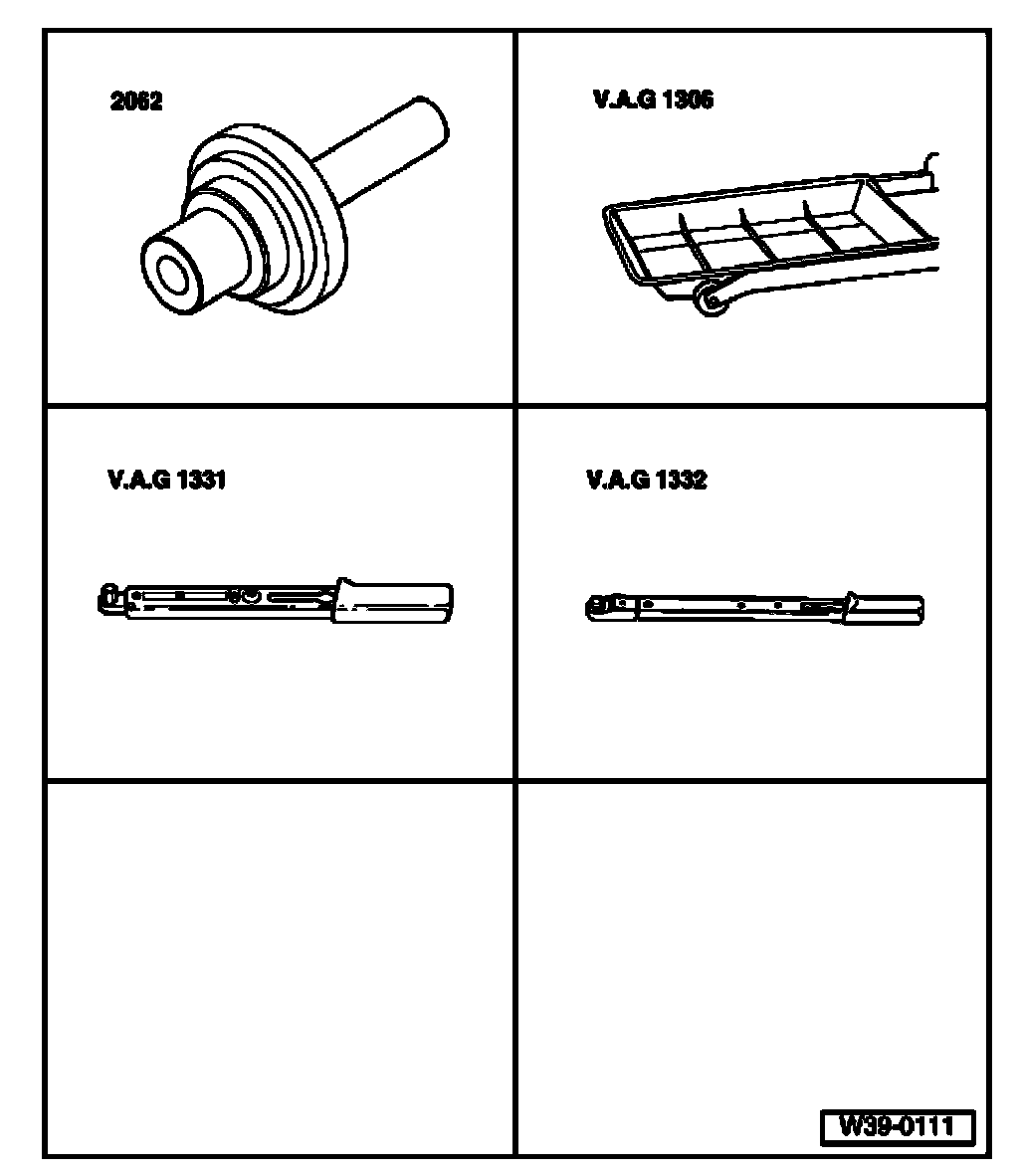

Special tools, testers and auxiliary items required:

^ Driver 2062
^ Drip tray V.A.G. 1306
^ Torque wrench 550 Nm V.A.G. 1331
^ Torque wrench 40-20 NM V.A.G. 1332
^ Sealing grease G052128A1
