Right Flanged Shaft Oil Seal, Replacing

Right flanged shaft oil seal, replacing, 01V, 5 SPD. A/T (AWD)
^ Observe general repair notes.

Special tools, testers and auxiliary items required:

^ Extractor lever VW681
^ Right sealing ring installer 3382
^ Torque wrench 550 Nm V.A.G. 1331
^ Torque wrench 40-200 NM V.A.G. 1332
^ Sealing grease G052128A1

Removing
^ Loosen bolt for drive axle/wheel hub and wheel bolts only when vehicle is standing on its wheels.
^ Remove wheel.

Vehicles with TDI engine





^ Remove noise insulation for right drive axle from wheel housing - arrows -.

All vehicles

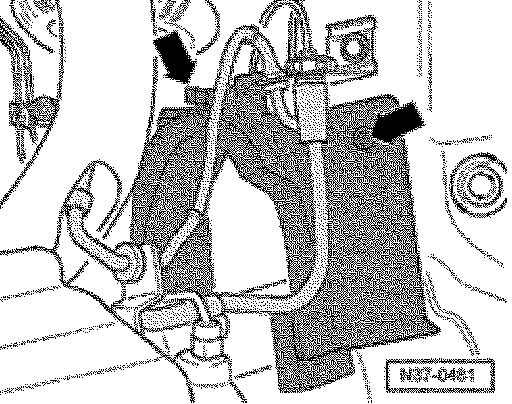

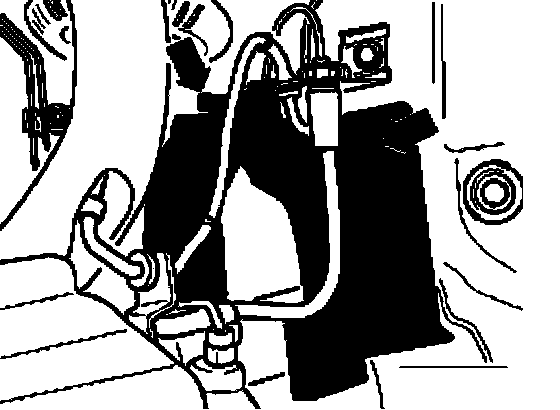

^ Remove shielding plate/drive axle - arrows - on right side. The third bolt is not visible in the illustration.

Continued for all vehicles

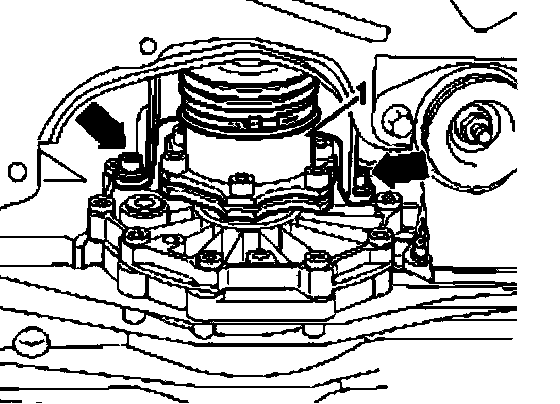

^ Remove right drive axle - 1 -.

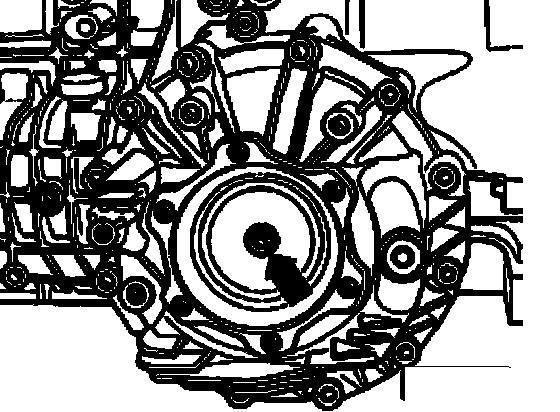

^ Remove bolt for flanged shaft - arrow - and secure against turning using a drift.
^ Place drip tray V.A.G. 1306 underneath.
^ Pull out right flanged shaft.





^ Pull out flanged shaft oil seal.

Installing
^ Coat outer circumference and sealing lips of sealing ring with axle oil.
^ Fill area between sealing lip and dust lip halfway with sealing grease G052128A1.

Installation position: The open side of the sealing ring faces the transmission.

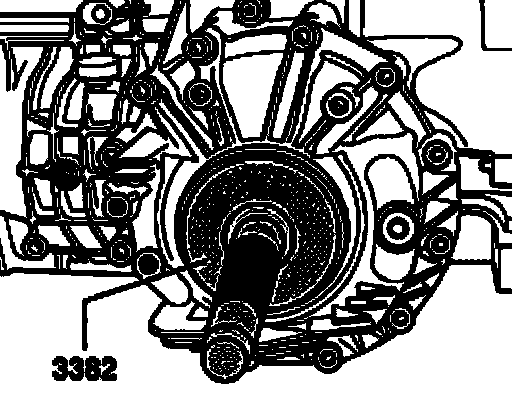

^ Drive new seal in as far as the stop; be sure not to distort seal.
^ Install right flanged shaft.

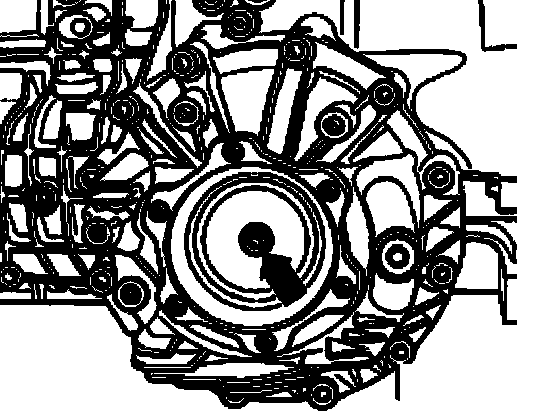

^ Screw in bolt for flanged shaft - arrow - and secure against turning using a drift.





^ Install right drive axle - 1 -.

All vehicles
^ Install shielding plate/drive axle - arrows - on right side. Third bolt is not visible in the illustration.

Vehicles with TDI engine





^ Install noise insulation - arrows - for right drive axle to wheel housing.

Continued for all vehicles
^ Install left wheel.
^ Check axle oil in front final drive with transmission installed.
