Rear Final Drive Identification

Rear final drive identification, 01V, 5 SPD. A/T (AWD)
If the rear final drive is to be replaced, it is absolutely necessary to note the code letters of not only the automatic transmission but also the engine of the vehicle. Only then is a correct application guaranteed.

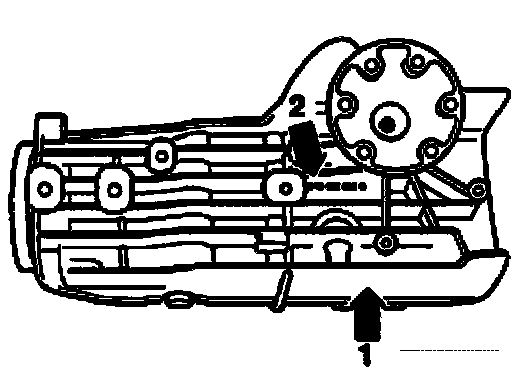

Location on final drive





Code letters and date of construction - arrow 1 -

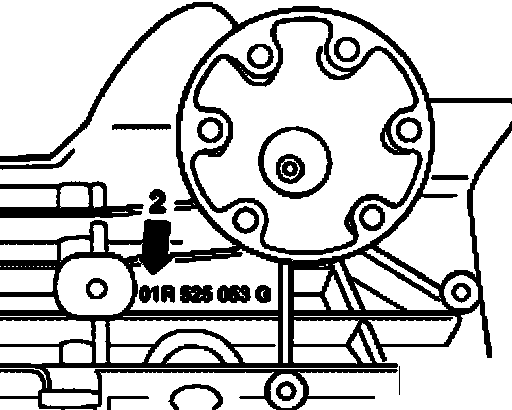

Final drive 01R - arrow2 -





Final drive 01R - arrow2 -

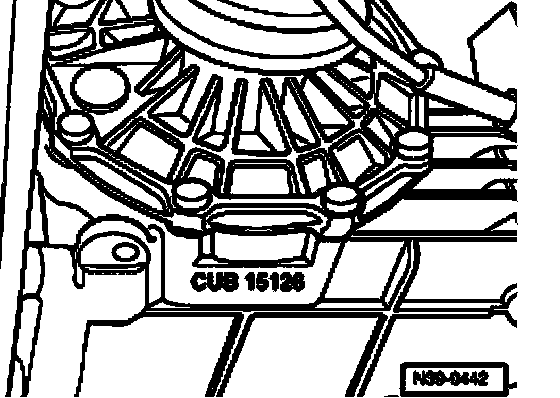

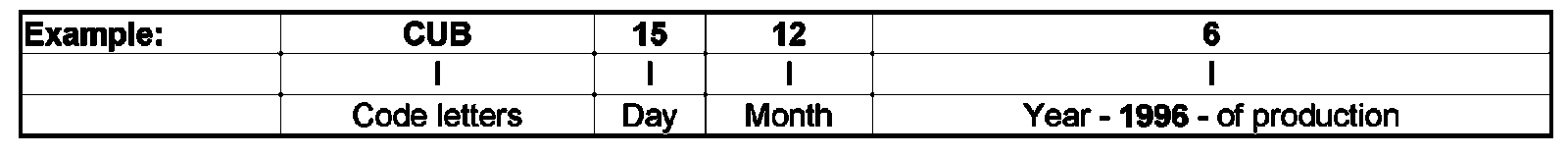

Code letters and date of manufacture of rear final drive








Further data can be ignored.
