Difference of Clutch Mechanisms

Difference of clutch mechanisms, 01A, 5 SPD. M/T (AWD)
There are two different versions for mounting master cylinder to clutch pedal
^ To check remove storage compartment on drivers side.

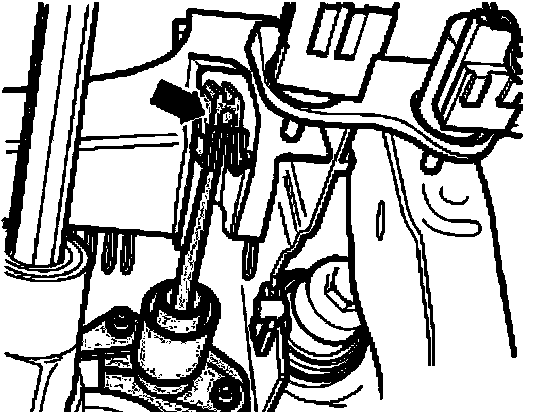

Master cylinder is secured to clutch pedal by a pin - arrow -.

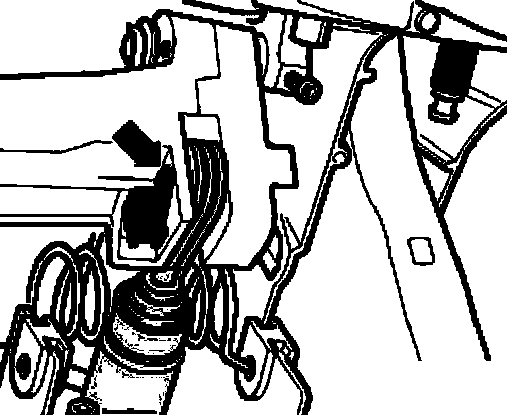

Master cylinder is locked in clutch pedal by a plastic mount - arrow -.
