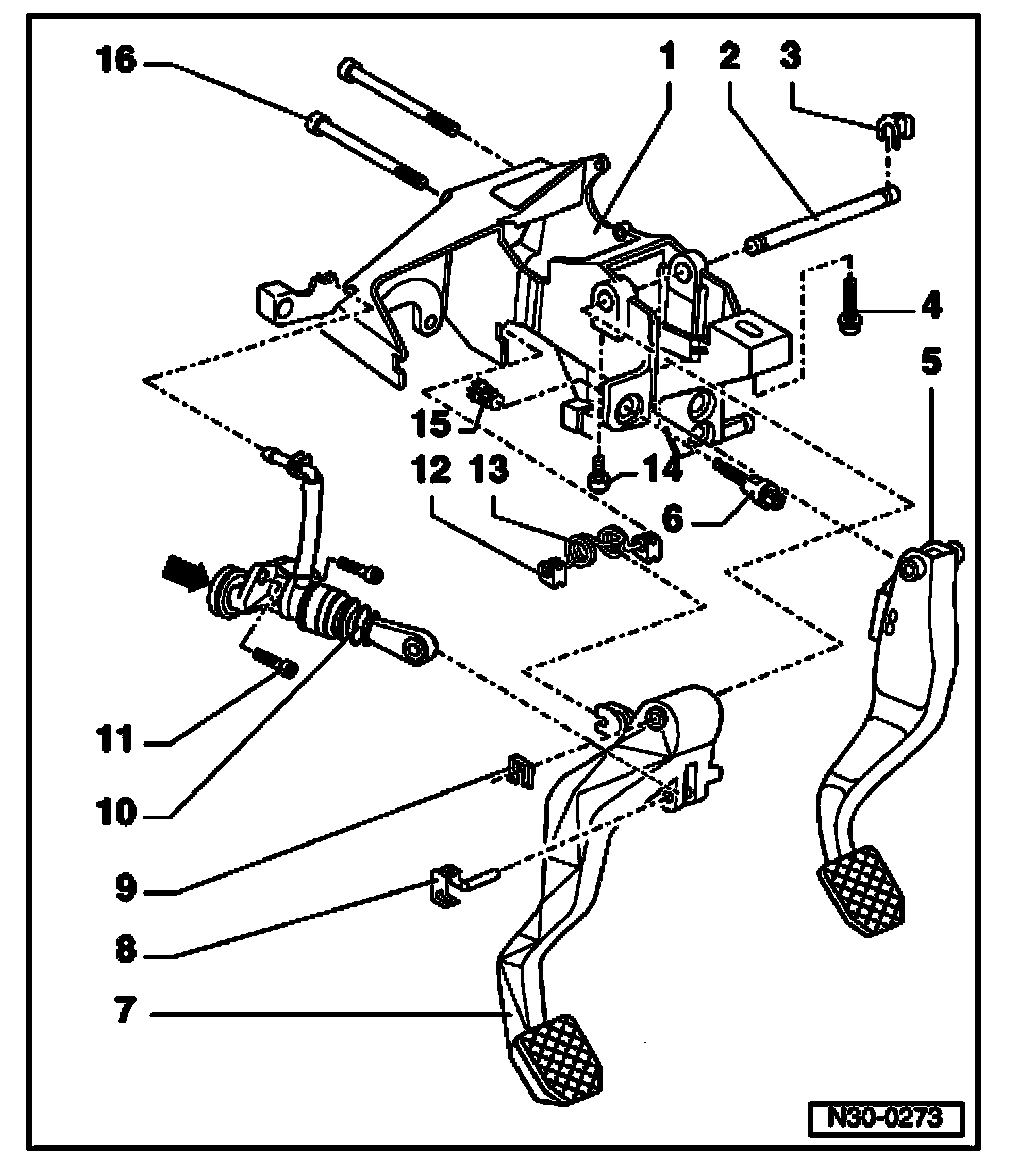

Clutch Pedal Assembly, Assembly Overview

Clutch pedal assembly, assembly overview, 01A, 5 SPD. M/T (AWD)





1. Mounting bracket
^ Before removing, remove steering column from steering gear

2. Pivot pin for clutch and brake pedals
3. Circlip
4. Socket head bolt, 25 Nm
5. Brake pedal
6. Clutch Pedal Switch F36
^ Clutch Pedal Switch F36 is secured directly in mounting bracket.

7. Clutch pedal
8. Pin
^ Always replace

9. Circlip
10. Clutch master cylinder
^ Do not operate clutch pedal after removal.
^ Seal - arrow - must not be removed

11. Socket head bolt, 20 Nm
12. Mount
^ Install in mounting bracket with over-center spring
^ Installation position: Deep notch points downward

13. Over-center spring
14. Socket head bolt, 5 Nm
^ Secures pivot pin for clutch and brake pedal

15. Retaining clip
16. Bolt, 25 Nm
^ Also secures master brake cylinder/brake booster to mounting bracket
