Clutch Mechanism, Servicing (Master Cylinder Locked In Clutch Pedal By A Plastic Mount): Overview

Overview, 01A, 5 SPD. M/T (AWD)
^ Obtain radio code for radios with anti-theft coding before disconnecting battery.
^ Disconnect battery Ground (GND) strap with ignition switched off.
^ If battery is re-connected, note work after re-connecting battery.
^ Lubricate all bearing and contact surfaces with grease G 000 450 02.
^ Before working on pedal assembly, remove storage compartment on drivers side.

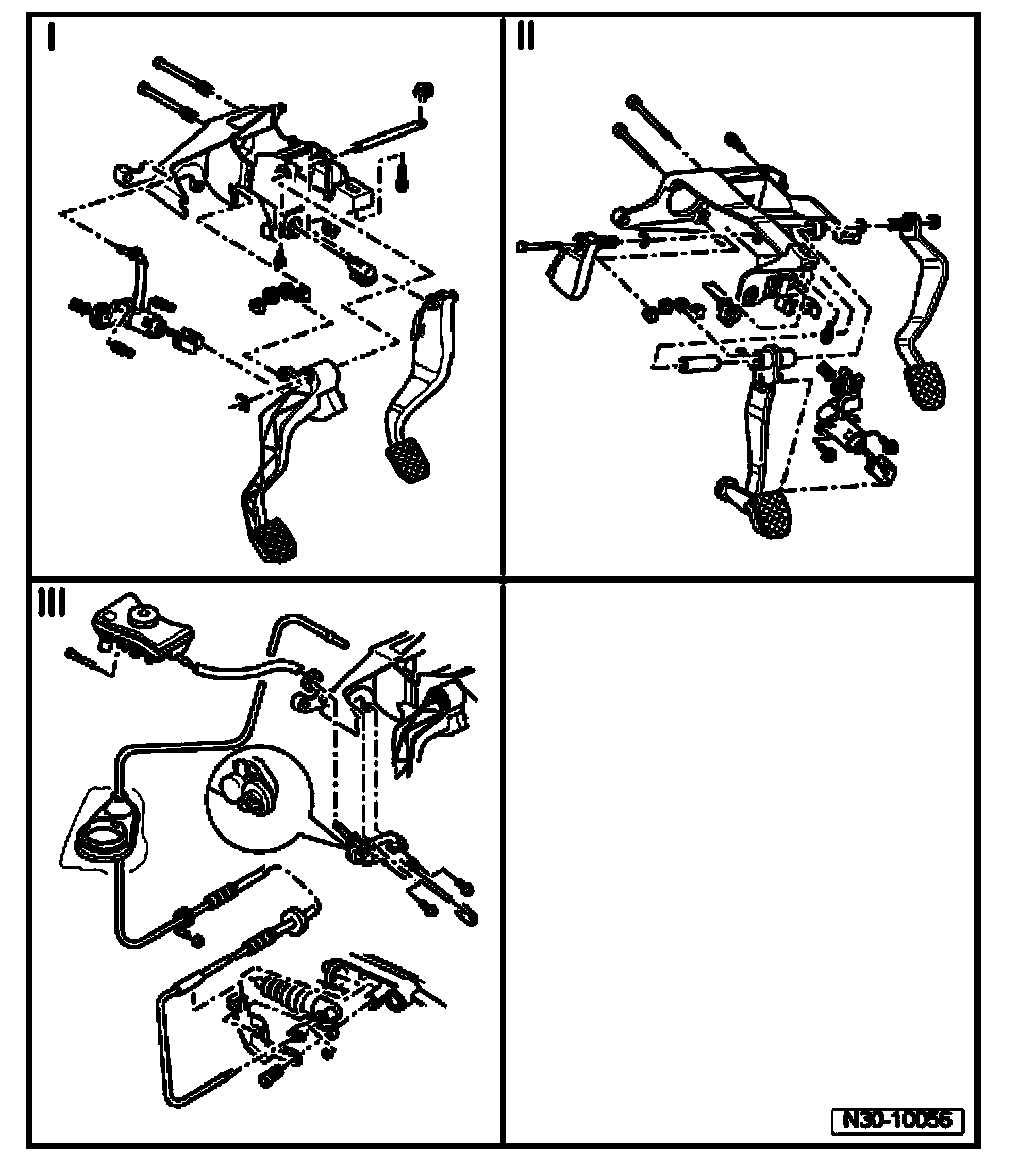

I. Pedal assembly, assembly overview
II. Pedal assembly, Right Hand Drive (RHD) vehicles, not included
III. Clutch hydraulic system, assembly overview
