Wiring Harness In Transmission, Removing and Installing

Wiring harness in transmission, removing and installing, 01V, 5 SPD. A/T (AWD)

Removing and installing wiring harness, transmission with hydraulic control E18/2.

Transmission with hydraulic control E17

Removing
^ Remove valve body with hydraulic control E17.

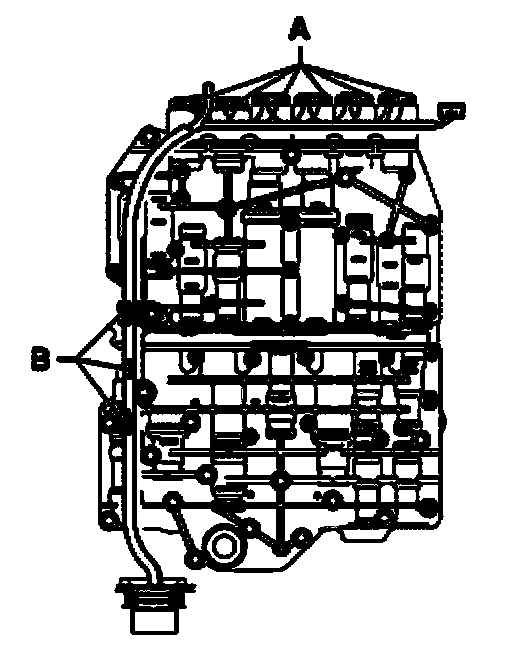

^ Pry out retainer straps of connectors at solenoid valves using a small screwdriver and disconnect connectors - A - in sequence.
^ Unhook wiring harness at side retainer straps - B - of valve body.

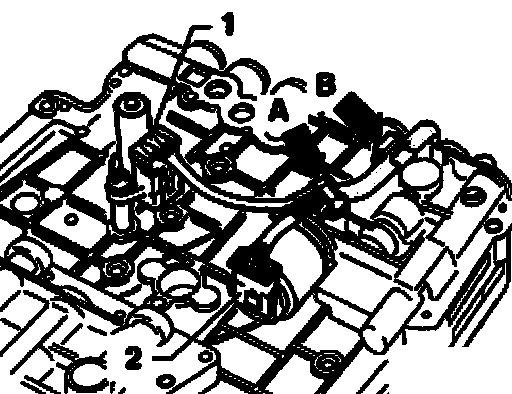

^ Turn valve body on its back side and loosen connector at Sensor for transmission RPM - 1 -
^ Remove retaining clip - arrow A - and unclip wiring harness from retaining clip - arrow B -
^ Disconnect connector - 2 - from Solenoid Valve 4 N91.

Installing
Installation is performed in the reverse order of removal. Pay attention to the following:
^ When installing, connect connectors of wiring harness to the corresponding solenoid valves.
^ Clip the wiring harness into the intended retaining clips. If deviated, the wiring harness could be pinched when installing the valve body.
^ Install valve body with hydraulic control E17.
^ Add ATF, check ATF level and top off.

Transmission with hydraulic control E18/2

Removing
^ Remove valve body with hydraulic control E18/2.





^ Pry out retainer straps of connectors at solenoid valves using a small screwdriver and disconnect connectors - A - in sequence.
^ Unhook wiring harness at side retainer straps - B - of valve body.

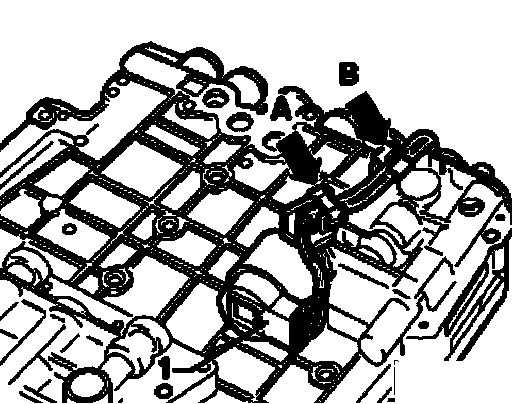

^ Turn valve body on its back side and loosen connector - 1 - at Automatic Transmission Pressure Regulating Valve 1 N215.
^ Remove retaining clip - arrow A - and unclip wiring harness from retaining clip - arrow B

Installing
Installation is performed in the reverse order of removal. Pay attention to the following:
^ When installing, connect connectors of wiring harness to the corresponding solenoid valves.
^ Clip the wiring harness into the intended retaining clips. If deviated, the wiring harness could be pinched when installing the valve body.
^ Install valve body with hydraulic control E18/2.
^ Add ATF, check ATF level and top off.
