01V, 5 SPD. A/T (AWD)

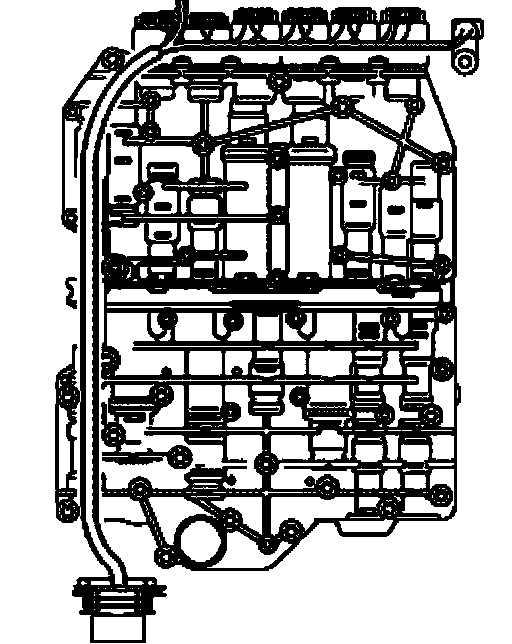

Valve body, 01V, 5 SPD. A/T (AWD)





Installation location: Valve body is bolted to underside of transmission housing and is covered by transmission oil pan.

Solenoid Valve 1 N88, Solenoid Valve 2 N89, Solenoid Valve 3 N90, Solenoid Valve 4 N91, Solenoid Valve 5 N92, Solenoid Valve 6 N93, Solenoid Valve 7 N94 are secured to valve body of hydraulic control E17.

Solenoid Valve 4 N91, Solenoid Valve 5 N92, Solenoid Valve 6 N93, Solenoid Valve 7 N94 are identified on valve body of hydraulic control E18/2 as Automatic Transmission Pressure Regulating Valve 1 N215, Automatic Transmission Pressure Regulating Valve 2 N216, Automatic Transmission Pressure Regulating Valve 3 N217 and Automatic Transmission Pressure Regulating Valve 4 N218.
