Transmission Mount: Service and Repair

Bonded rubber mounting for transmission support, pressing out and in

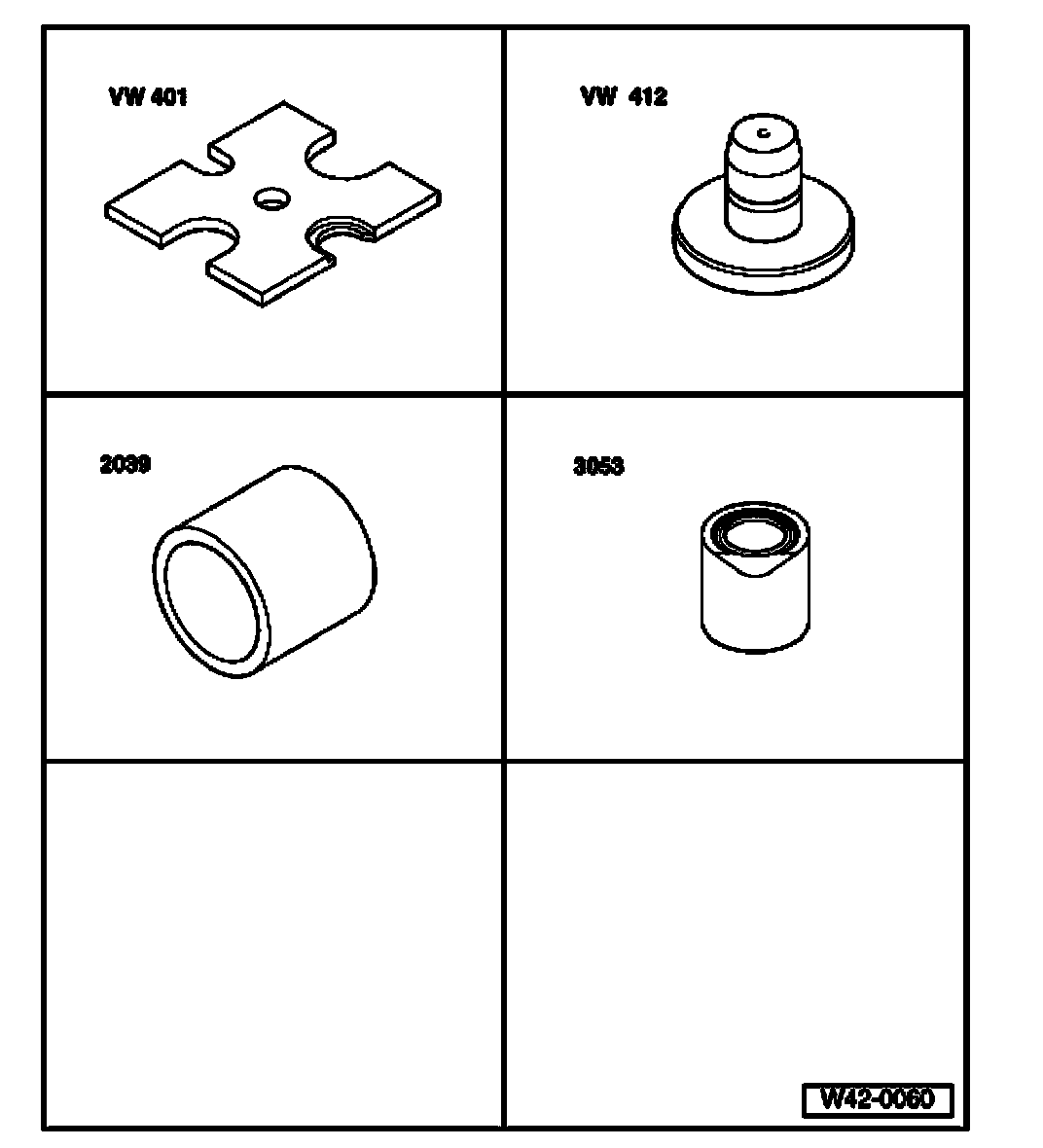

Special tools, testers and auxiliary items required:

^ Thrust plate VW 401
^ Punch VW 412
^ Press tool 2039
^ Guide tube 3053

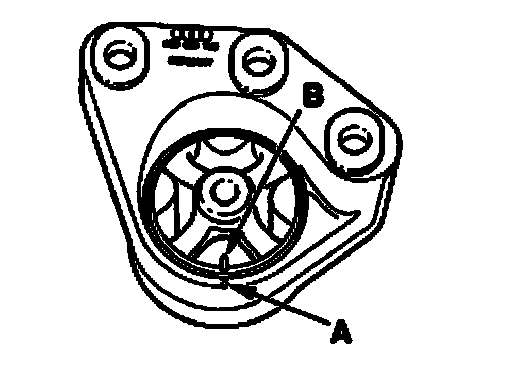

Mark installation position of bonded rubber mounting
^ Mark installation position - arrow A - e.g. with a felt tip pen.

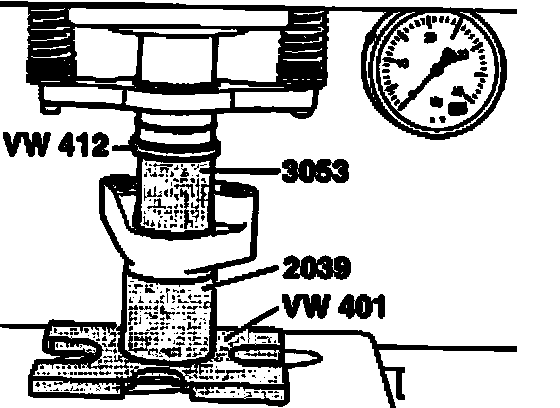

Pressing bonded rubber mounting out of transmission support

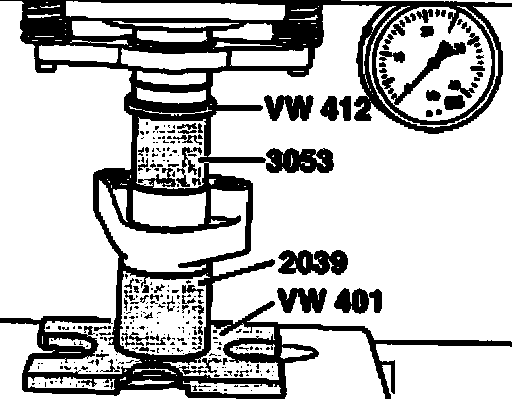

Pressing bonded rubber mounting into transmission support
^ Position bonded rubber mounting so that one of the rubber nipples - arrow B - on illustration N42-0214 aligns with marking - arrow A -.
