Torque Converter, Draining

Torque converter, draining, 01V, 5 SPD. A/T (AWD)

Special tools, testers and auxiliary items required

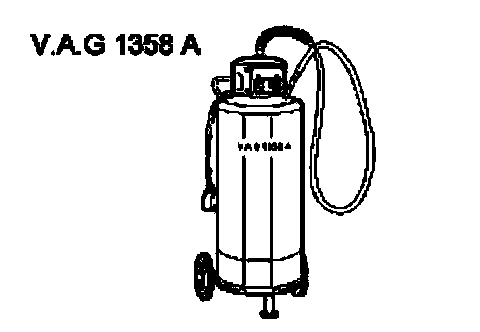

Oil extraction device V.A.G. 1358A:

^ Oil extraction sensor V.A.G.1358A/1

In case of soiling of the ATF via shavings or during a major transmission overhaul, torque converter must be drained as follows:

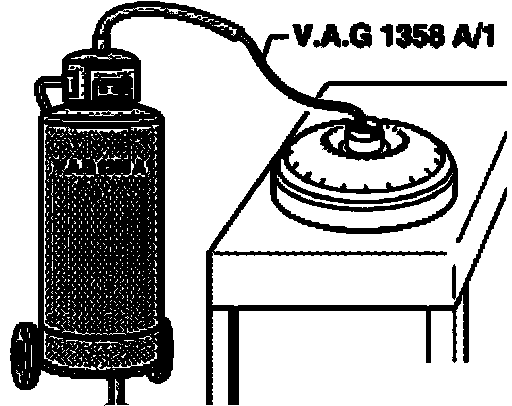

^ Extract ATF using oil extraction device V.A.G1358A and oil extraction sensor V.A.G1358A/1 from torque converter.
