Torque Converter, Checking



Torque converter, checking, 01V, 5 SPD. A/T (AWD)

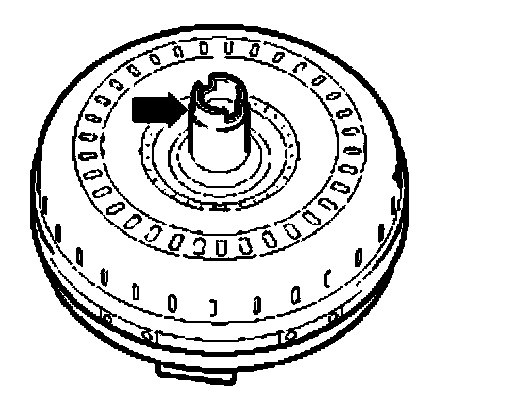

^ Check converter hub for wear grooves.
Torque converter is welded and must be replaced if damaged.
