Torque Converter, Assembly Overview

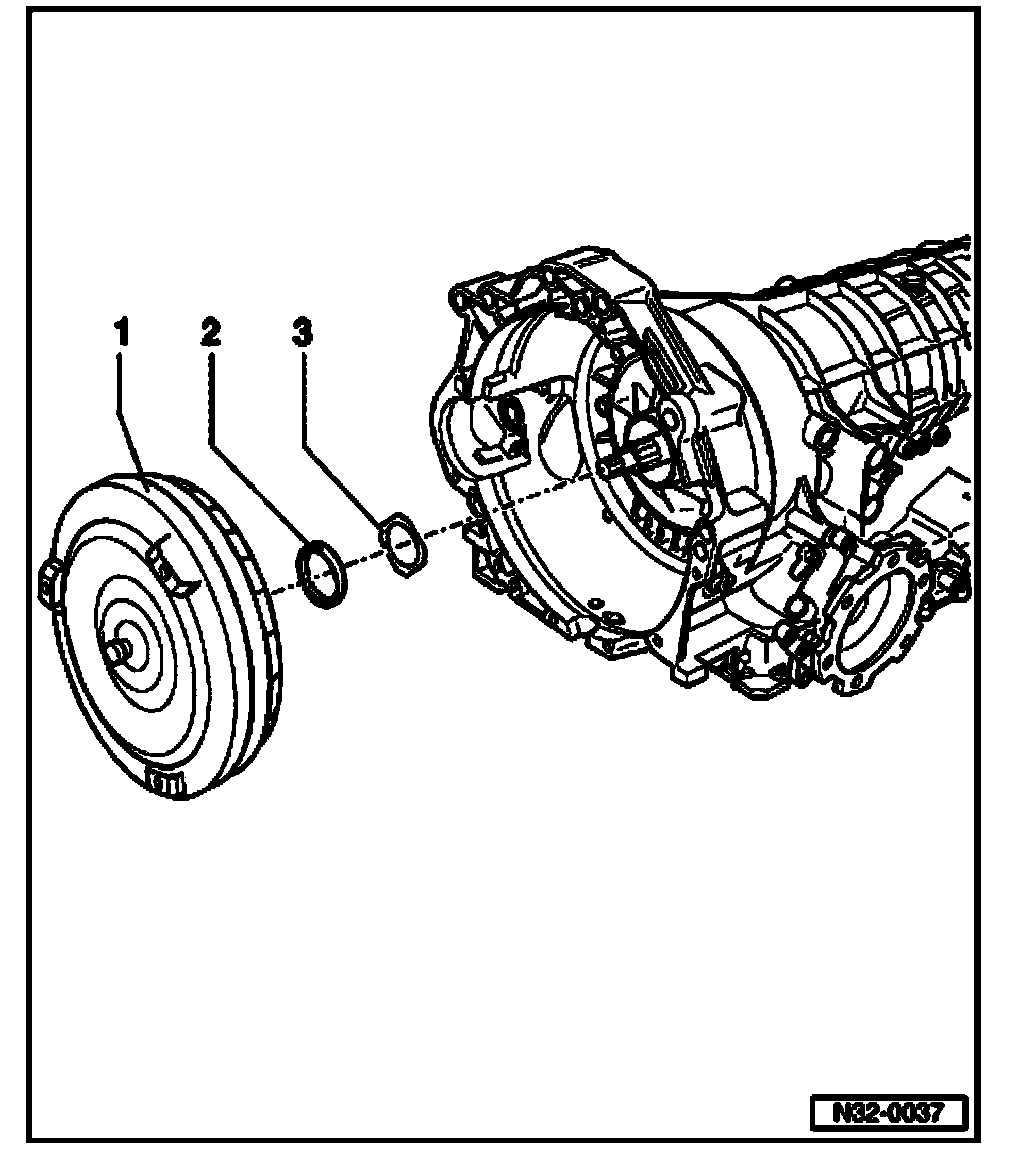

Torque converter, assembly overview, 01V, 5 SPD. A/T (AWD)





1. Torque converter
^ Secure on removed transmission to keep it from falling out

2. Seal
3. Contact ring
^ Behind seal
^ Replace if damaged

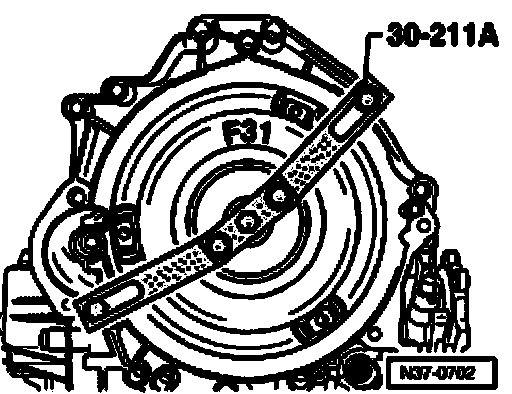

Secure converter so it does not fall out
