Hard Shifting, Slipping Problems In 4TH and 5TH Gear

Hard shifting, slipping problems in 4th and 5th gear, 01V, 5 SPD. A/T





^ Possible damage:

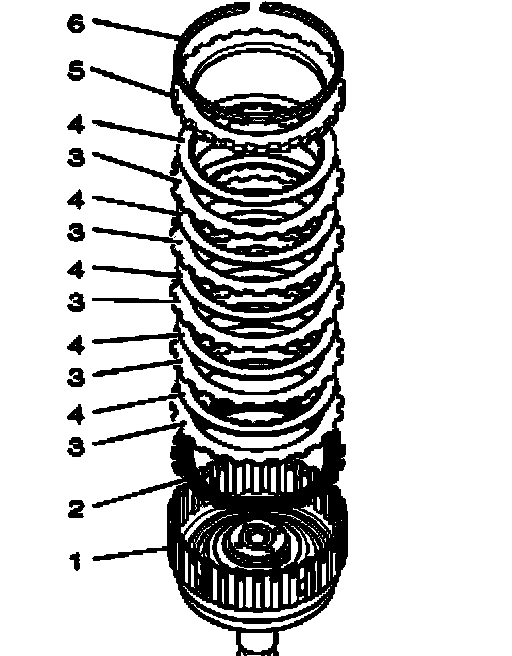

Clutch plate "E" - item 3 - burnt out

^ Cause:

Wear or malfunctioning of torque converter clutch

^ Required actions:
^ Check torque converter clutch while driving.
^ Completely disassemble and clean transmission.
^ Clean ATF lines and ATF cooler.
^ Disassemble and check all clutches.
^ If there is heavy soiling.
^ Replace components - 2 to 5 - of clutch "E".
^ Replace overheated cylinder "E" - 1 - (blue color).
^ Replace ATF strainer.
