Tester, Connecting - 01V, 5 SPD. A/T (AWD)

Tester, connecting, 01V, 5 SPD. A/T (AWD)

Special tools, testers and auxiliary items required

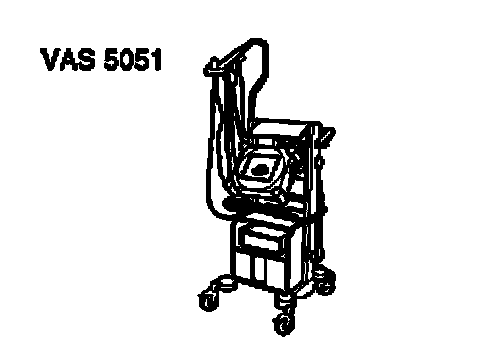

^ Diagnostic operation system VAS5051 A
^ Diagnostic cable, 3 m with voltage supply VAS5051/1 or Diagnostic cable, 5 m without voltage supply VAS5051/3

CAUTION:
^ During a test drive you must always secure testing and measuring equipment on the back seat.
^ These devices may only be operated by a passenger during a test drive.

Vehicles up to 09.00

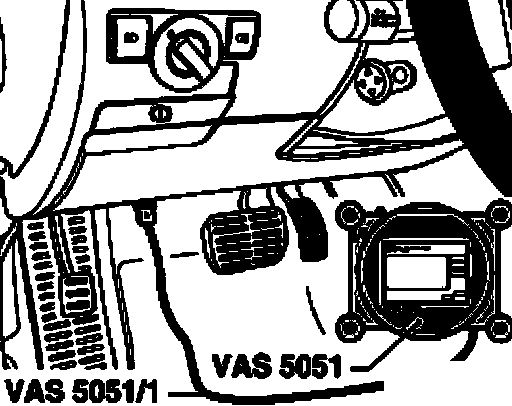

- Remove cover over Data Link Connector (DLC) on the right, next to parking brake lever.

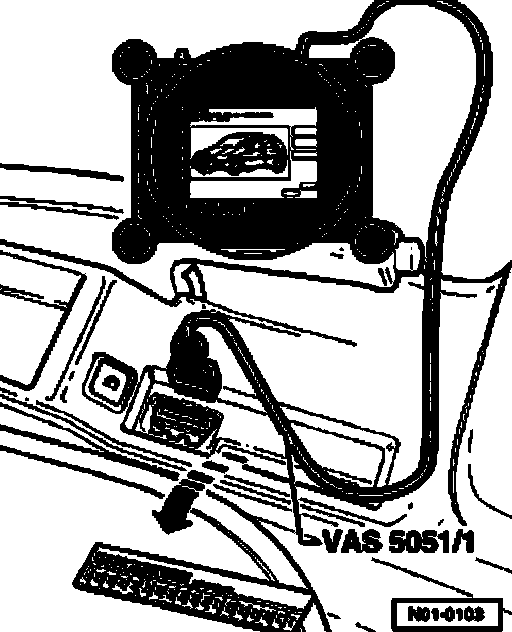

- Plug the connector of diagnostic cable VAS5051/1 or VAS5051/3 into the vehicle Data Link Connector (DLC).

Vehicles from 10.00





- Plug the connector of diagnostic cable VAS5051/1 or VAS5051/3 into the vehicle Data Link Connector (DLC).

Continued for all vehicles
All functions that were performed up to this point on the V.A.G. 1551 can also be performed using the new tester VAS5051 A in the operation mode "On Board Diagnosis (OBD)" Operators Manual for diagnostic operation system VAS 5051 A.

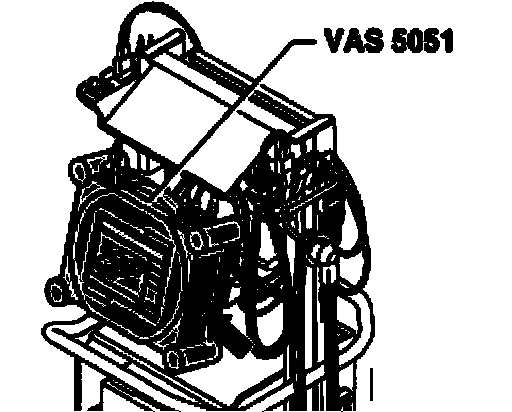

- Turn on tester - arrow -.
The tester is operational when it displays the operating modes selections.

- Switch on ignition.
- Touch Guided Fault Finding on screen.
- Select one after the other:
^ Brand
^ Model
^ Model year
^ Version
^ Engine code

- Confirm data entered.

Note:
^ Wait until tester has checked all control modules in vehicle.

- Press the Go to button and select the "Function/component selection" function.

Now follow information given on screen to start the desired functions.
