Vehicle Diagnosis, Testing and Information System VAS 5051, Connecting and Selecting Engine Electronics Control Module

Vehicle diagnosis, testing and information system VAS 5051, connecting and selecting engine electronics control module, 01V, 5 SPD. A/T (OBD)

All functions which could previously be performed with V.A.G 1551/1552 can also be performed with the new tester VAS 5051 in the operating mode vehicle On-Board Diagnostic (OBD)

Special tools and equipment

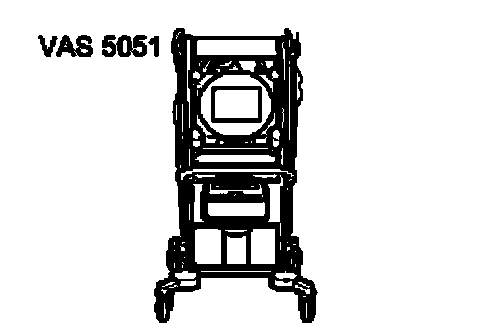

VAS 5051 Diagnosis, Testing and Information System:

Work sequence
^ With ignition switched off, connect tester VAS 5051 to Data Link Connector (DLC) using diagnosis cable VAS 5051/1 or VAS 5051/3.

Note:
^ In the functions 04 - Basic setting/08 - Read data block, the display zones will be listed from top to bottom.
