Home >> Volkswagen >> 2005 >> Passat Wagon 4Motion (3B6) L4-1.8L Turbo (AWM) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Testing - 01V, 5 SPD. A/T (OBD) >> Transmission With Hydraulic Regulation -E18/2- >> Test Tables >> Display Group 125

Display Group 125

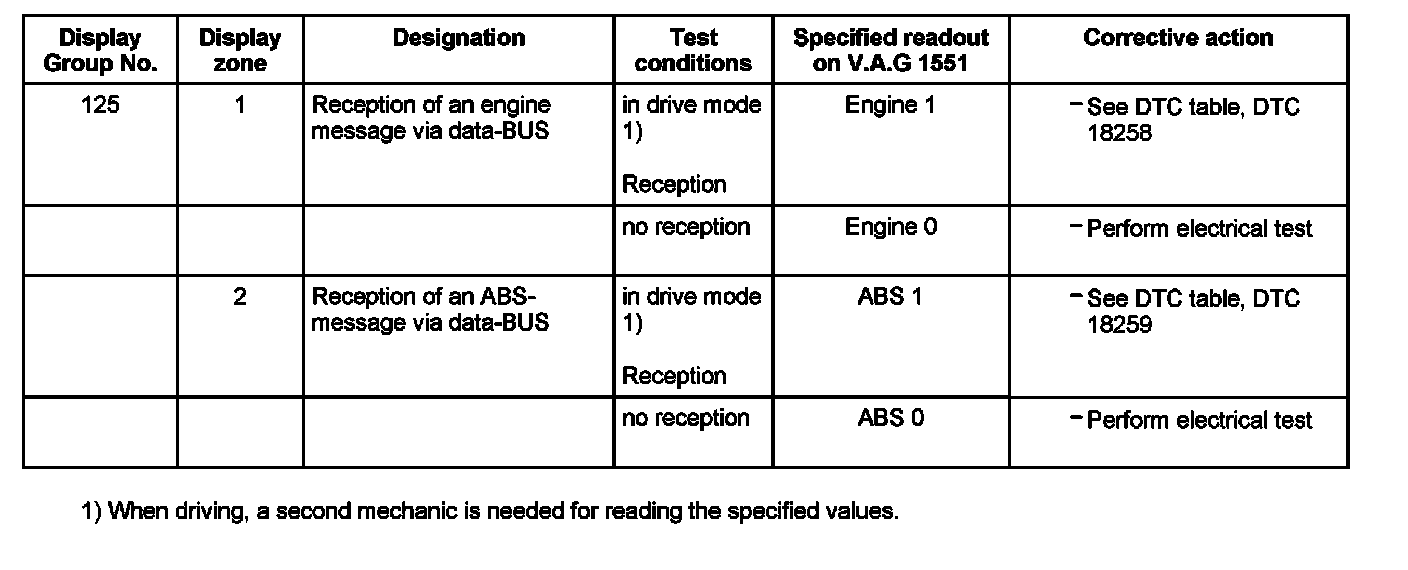

Display Group Number 125, Display Field (1-2):
