Display Group 001

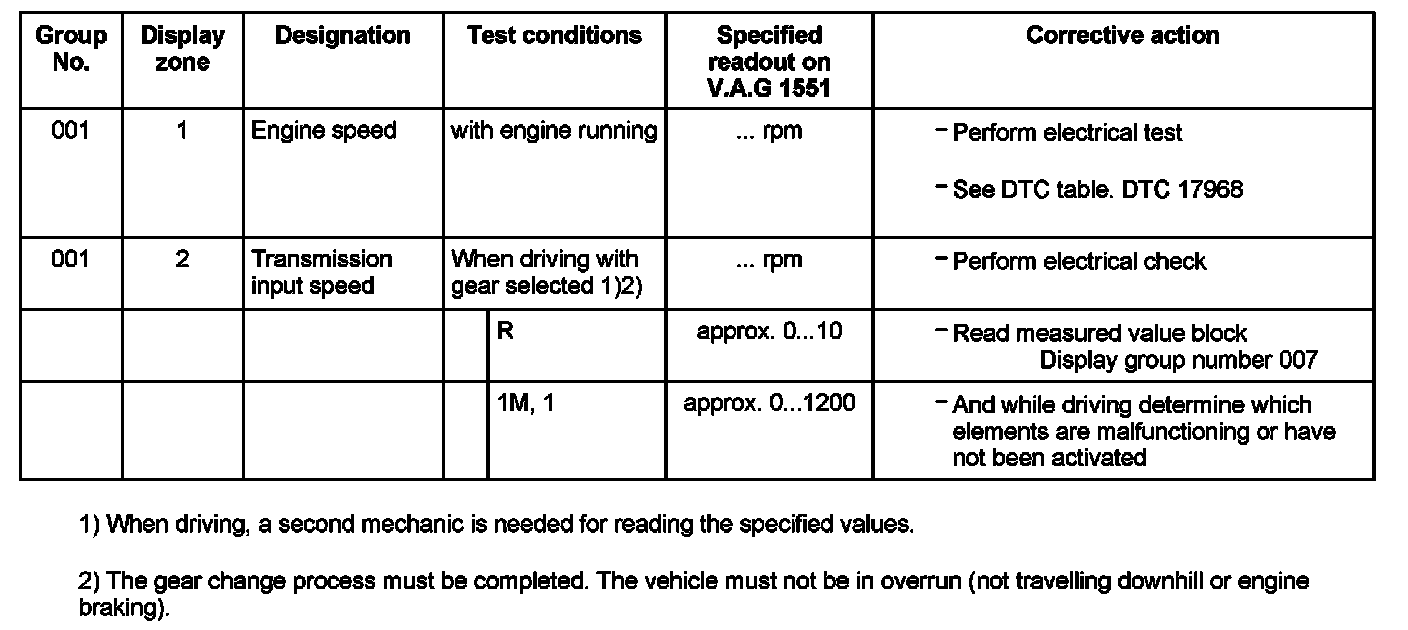

Display Group Number 001, Display Field (1-2):

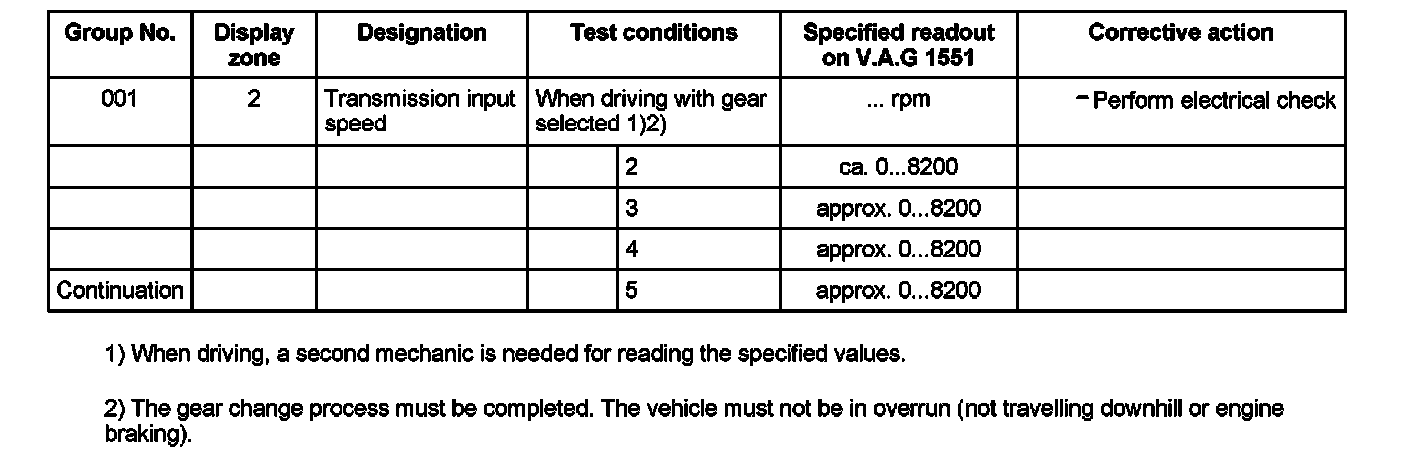

Display Group Number 001, Display Field (2) Cont'd:



Display Group Number 001, Display Field (3):



Display Group Number 001, Display Field (4):
