Clearing Trouble Codes - 01V, 5 SPD. A/T (OBD)

Diagnostic Trouble Code (DTC) memory, erasing, 01V, 5 SPD. A/T (OBD)

Note: All functions which could previously be performed with V.A.G. 1551 can also be performed with the new tester VAS 5051.

Requirement
^ DTC memory checked.

After DTC memory has been checked:

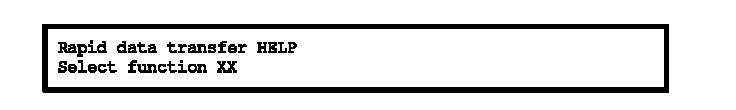

Indicated on display:
- Press keys 0 and 5. (function "Erase DTC memory" is entered with 05.)





Indicated on display:
- Confirm entry with key Q.

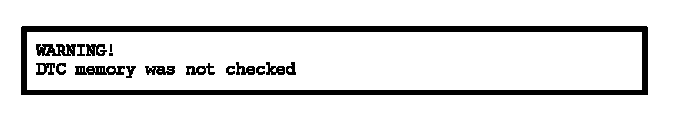

Indicated on display:

The work sequence was not adhered to exactly. The DTC memory must first be checked.

Note: If the ignition was switched off e.g. between checking the DTC memory and erasing DTC memory, the DTC memory is then not erased.

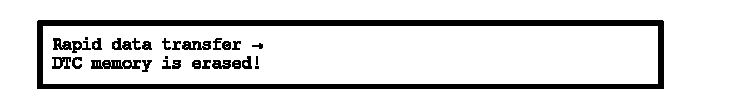

Indicated on display:

(The DTC memory will be erased approximately 5 seconds. after the display appears.)

The DTC memory is now erased.
- Wait about 1 minute before again checking DTC memory.





Indicated on display:





Print out with printer switched on:

Control module -J217- was not given sufficient time to recognize faults.
- Wait about 1 minute before again checking DTC memory.
- After checking and erasing DTC memory, perform a test drive and again check DTC memory.





When the DTC memory is checked, the following display should appear:
"No DTC recognized!"
