Position of Selector Elements With Hydraulic Control E17

Position of selector elements with hydraulic control E17, 01V, 5 SPD. A/T (AWD)

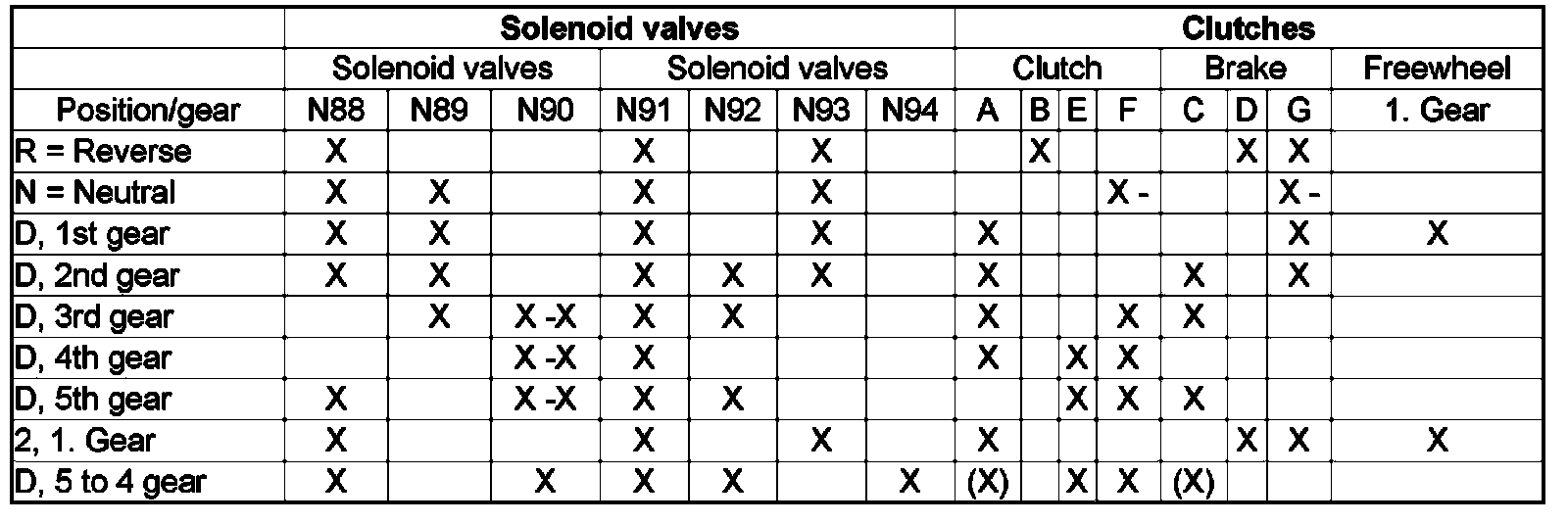

When dealing with problems relating to poor acceleration and performance or general malfunctions with the powertrain, the following chart indicates which selector elements are actuated in the various gears. This should help to identify the selector elements that are not working properly.





x = Component is active

- = Component is not active

(x) = Component active depending on vehicle status
