Transmission Control Module (TCM) -J217- Multi-Pin Connector (88 Pin) Assignment (Sockets on VAG 1598/20)

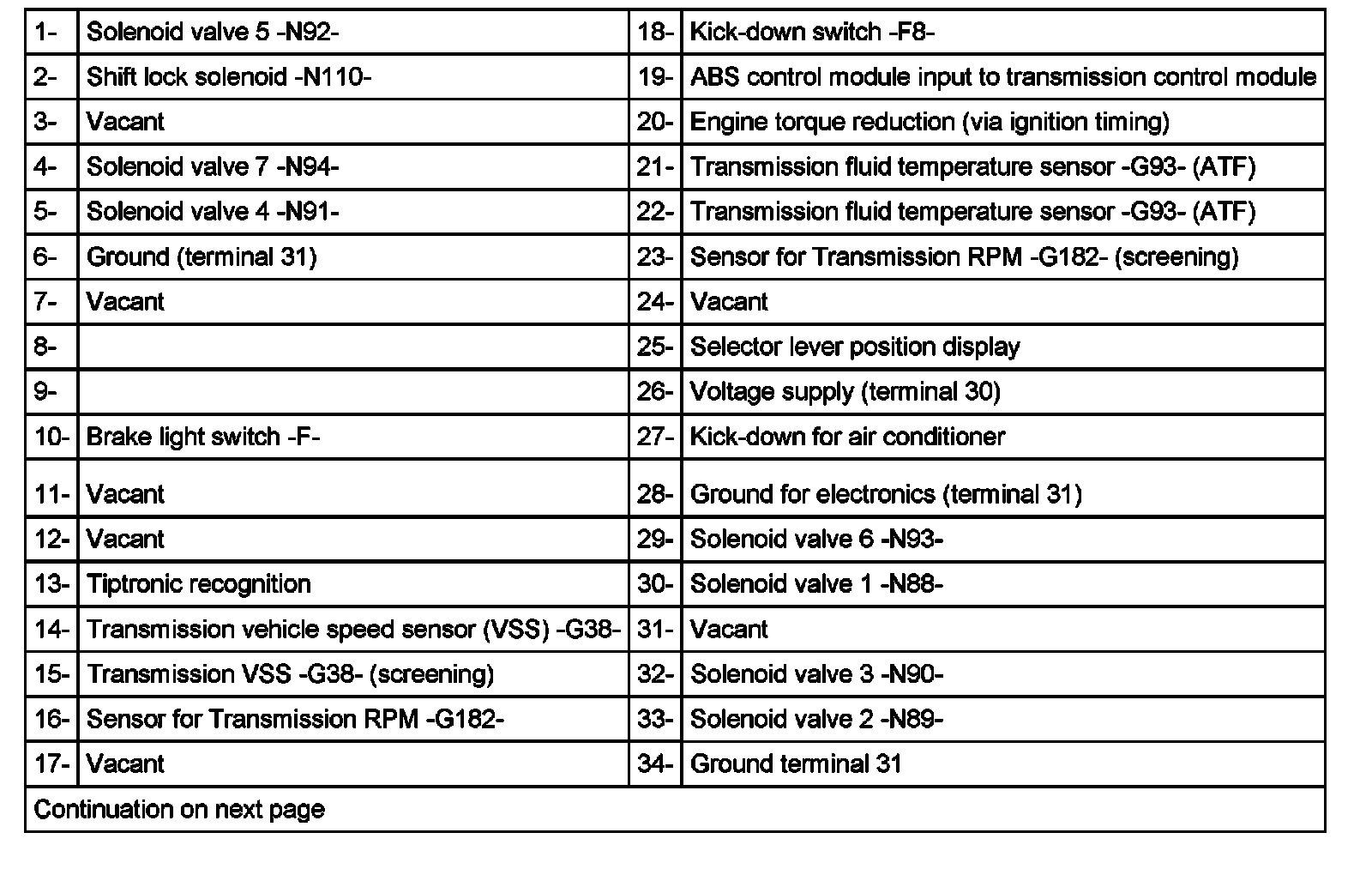

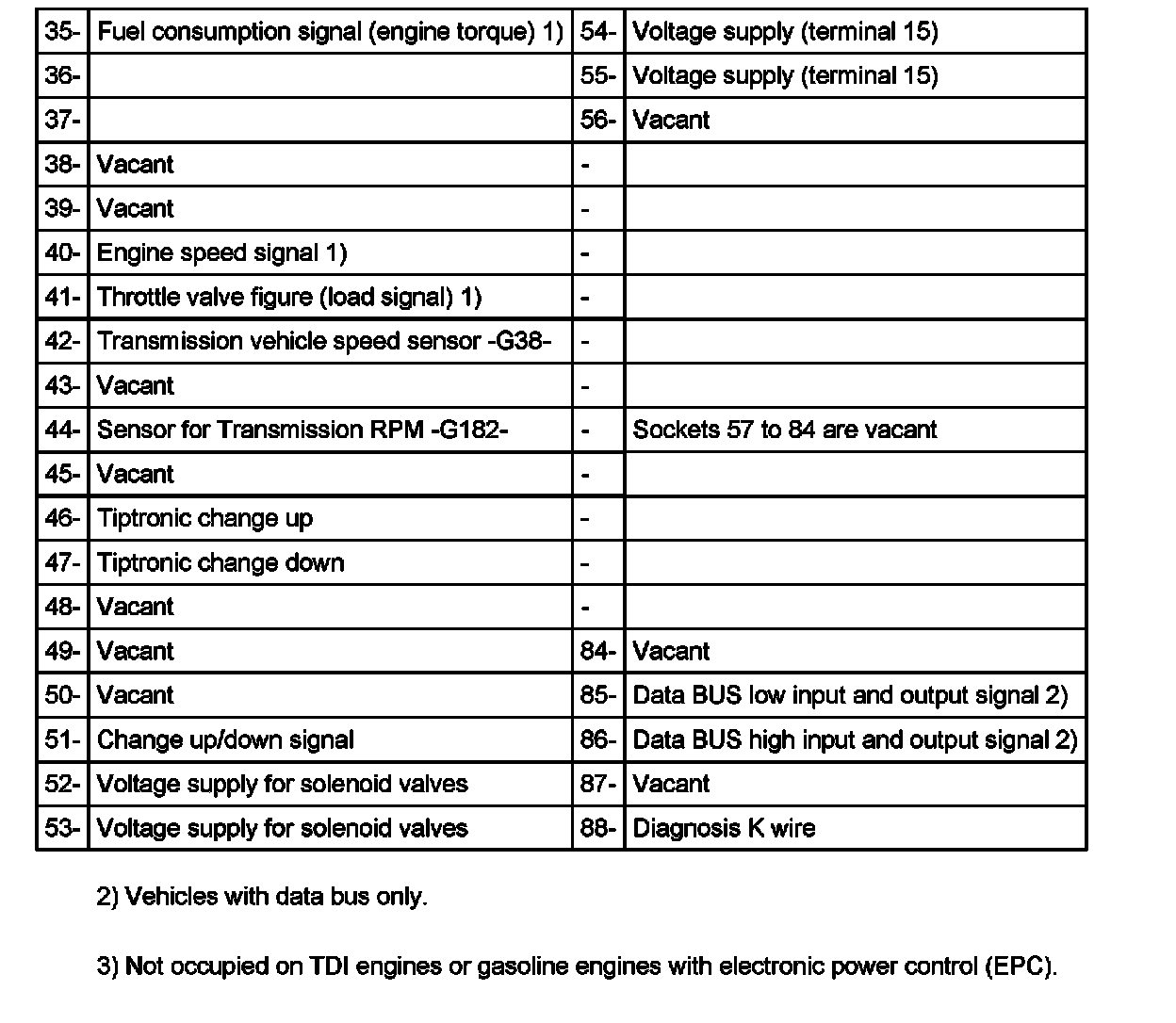

Transmission control module (TCM) -J217- multi-pin connector (88 pin) assignment (sockets on VAG 1598/20), 01V, 5 SPD. A/T (OBD)

sockets on VAG 1598/20:




sockets on VAG 1598/20:
