Home >> Volkswagen >> 2005 >> Passat Wagon 4Motion (3B6) L4-1.8L Turbo (AWM) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Component Tests and General Diagnostics >> Non-Trouble Code Procedures - 01V, 5 SPD. A/T (OBD) >> Test Tables >> Test Steps 24-25

Test Steps 24-25

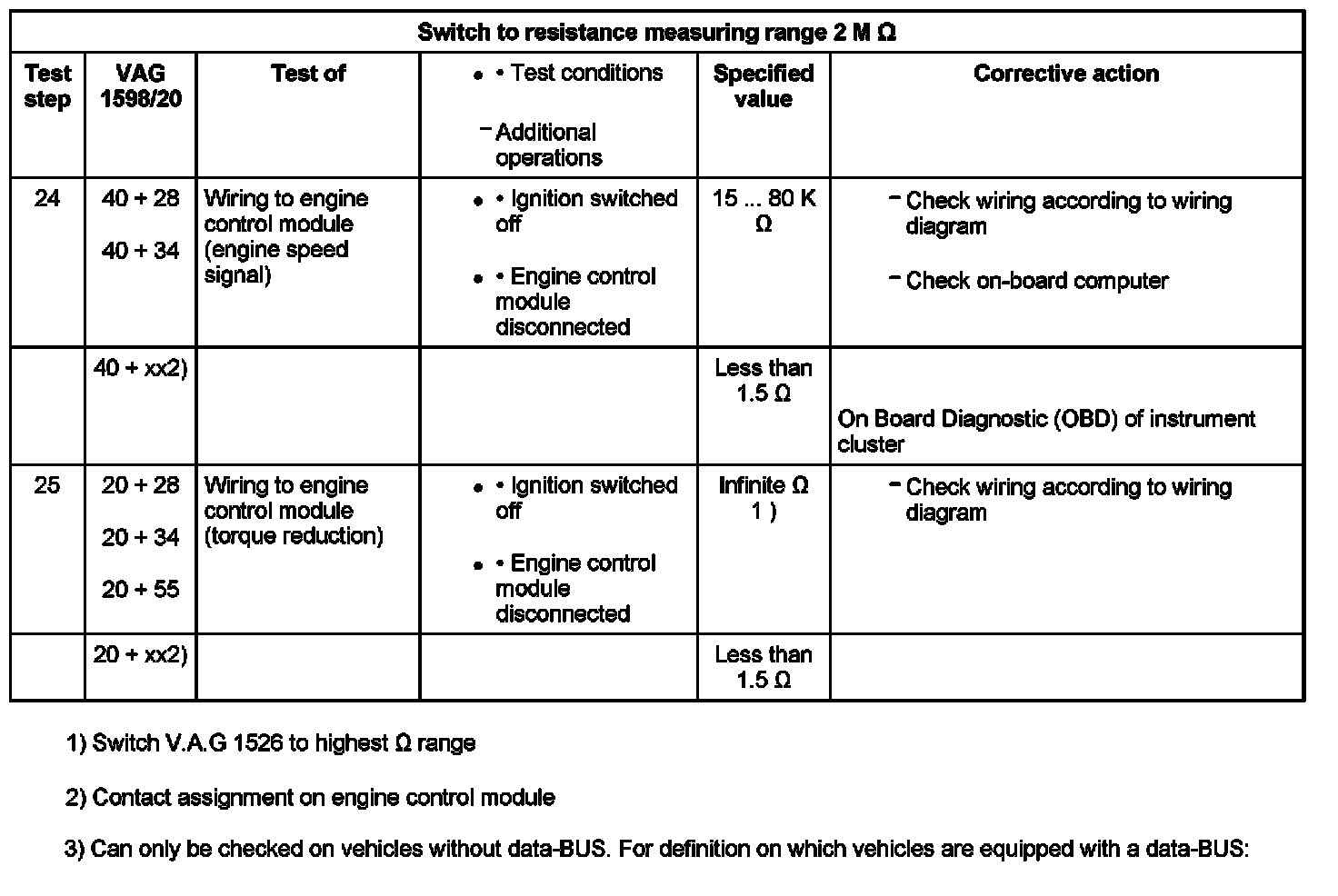

Test Table, Test Steps 24-25:
