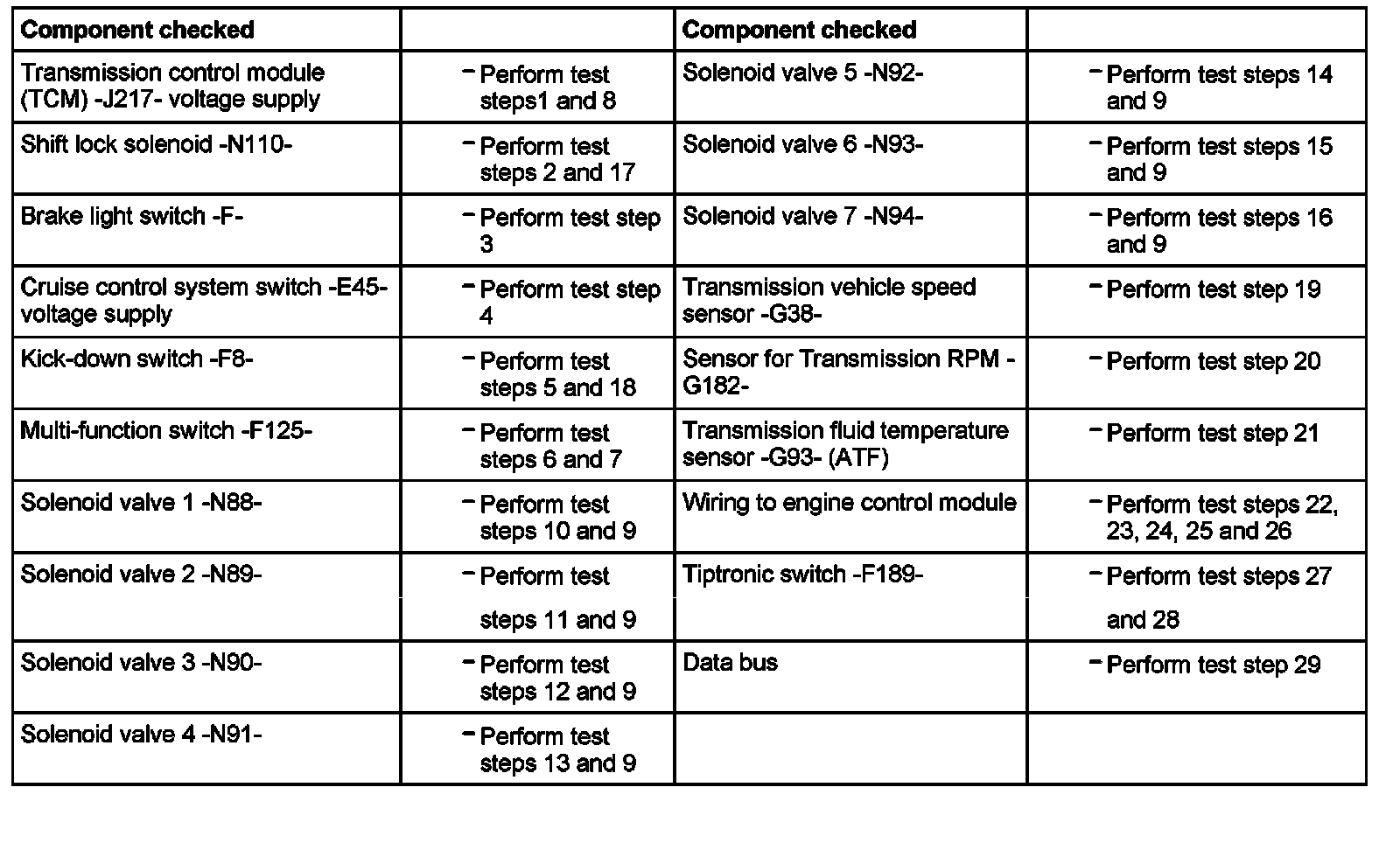

List of Test Steps (Multi-Pin Connector With 88 Pins)

List of test steps (multi-pin connector with 88 pins), 01V, 5 SPD. A/T (OBD)





^ Only perform test steps for the relevant component as listed in DTC table and read measured value block.
