Selector Mechanism, Disassembling and Assembling, Assembly Overview
Selector mechanism, disassembling and assembling, assembly overview, 01V, 5 SPD. A/T (AWD)
Special tools, testers and auxiliary items required
^ Polycarbamide grease G052142A2
Lubricate bearing areas and slide surfaces with polycarbamide grease G052142A2.

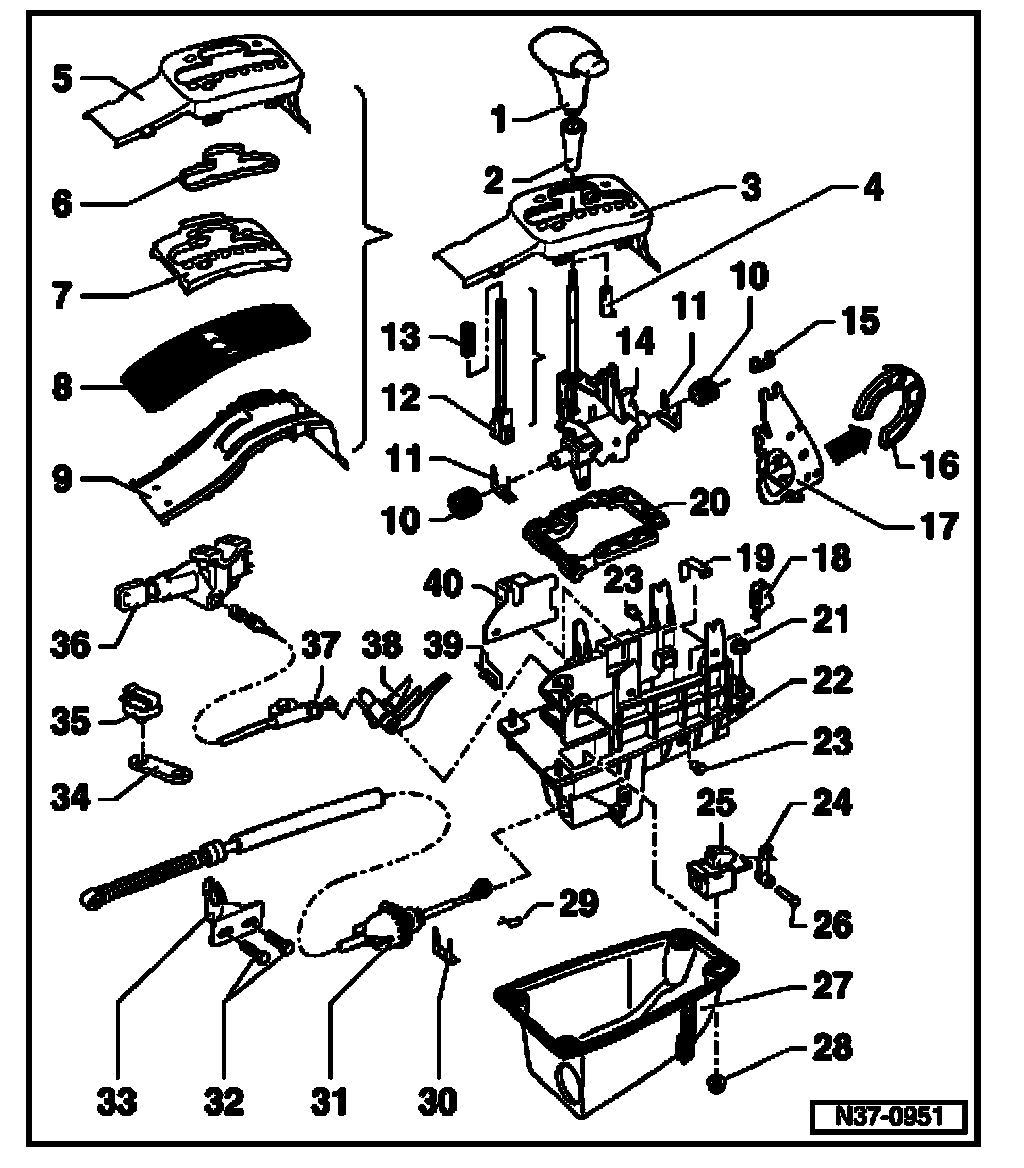

1. Selector lever handle
2. Sleeve
^ Engages in selector lever knob
^ Locks the removal of selector lever handle
^ Installation position: Chamfer faces rear
3. Selector cover
^ Remove upward
^ Disconnect connector for shift positions, selector lever lock and Tiptronic
4. Guide sleeve
^ Installation position: Engage foot toward rear
5. Cover molding
^ cannot be replaced separately
6. Recess panel
^ cannot be replaced separately
7. Symbol panel
^ with circuit board
^ with Tiptronic Switch F189 integrated in circuit board
^ cannot be replaced separately
8. Cover strip
^ with 2 magnets for Tiptronic Switch F189 and gear display
^ Magnets must be secured firmly to cover strip
9. Guide + guides cover strip
10. Bushing
11. Locking clip
^ Installation position: Install with angled ends pointing towards the inside of the selector lever mechanism housing
^ Always replace
12. Pull-rod
13. Spring
14. Selector lever
^ with pull-rod, compression spring, gate and Tiptronic-spring system
15. Stop buffer
^ Installation position: Large contact surface toward selector lever
16. Retainer
17. Cable lever
18. Retaining spring with roller
^ For shift positions
19. Retaining spring with roller
^ For Tiptronic position
20. Frame
^ Installation position: Ribs point upward
21. Nut, 10 Nm
22. Selector lever mechanism housing
23. Pivot pin
24. Locking latch
^ for shift lock solenoid
25. Shift Lock Solenoid N110
^ can be checked in "Guided Fault Finding" using the VAS5051 A
26. Pivot pin
27. Cover
28. Nut, 10 Nm
29. Retaining clip
^ Installation position: install angled end toward front and upward
30. Locking clip
^ Installation position: Angled end points toward the end of the selector lever cable.
^ Always replace
31. Selector lever cable
^ do not bend or kink; lightly grease coupling ring and ball socket before installing
^ in case of damaged rubber boots, the selector lever cable must be replaced
^ When installing, make sure that rubber sleeve on transmission side is not twisted
32. Hex bolt, 23 Nm
33. Support bracket
^ For selector lever cable on transmission
34. Bracket
^ For locking cable
35. Cable clip
^ For locking cable
36. Ignition/starter switch
37. Locking cable
^ For ignition key removal lock
^ Not to be kinked
38. Lever for locking cable
^ For ignition key removal lock
39. Retaining spring
^ For locking cable
40. Mounting
^ for selector lever in Tiptronic position
Wire for selector lever lock, selector lever light and Tiptronic, removing and installing
Removing

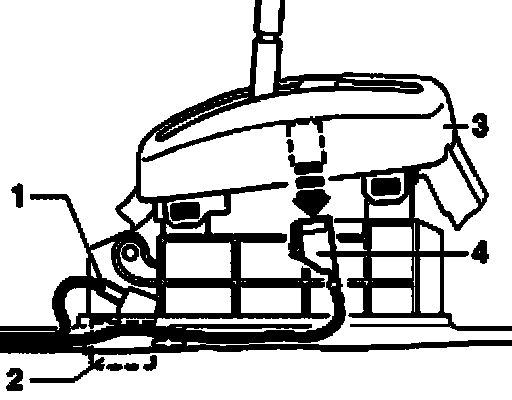

^ Disconnect connector - 1 - for shift lock solenoid - 2 - (hidden).
^ Unclip cover - 3 - and lift.
^ Disconnect connector - 4 - for shift positions and Tiptronic in direction of arrow.
Installing
Installation is performed in the reverse order of removal.
^ Install center console and extension.
Retaining spring for locking cable, removing and installing
Removing

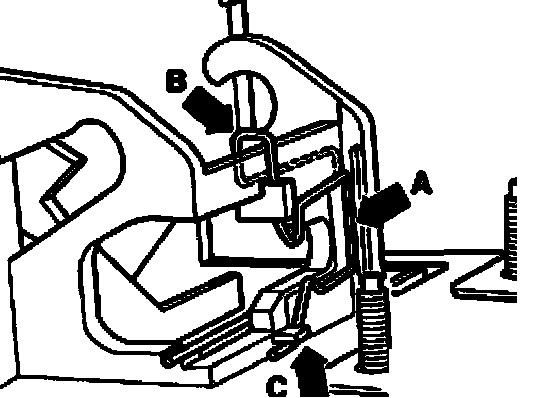

^ Slightly lift spring at top - arrow B - and remove locking cable from selector mechanism.
^ Unhook spring - arrow A - at retaining clip - arrow C - and remove toward top.
Installing

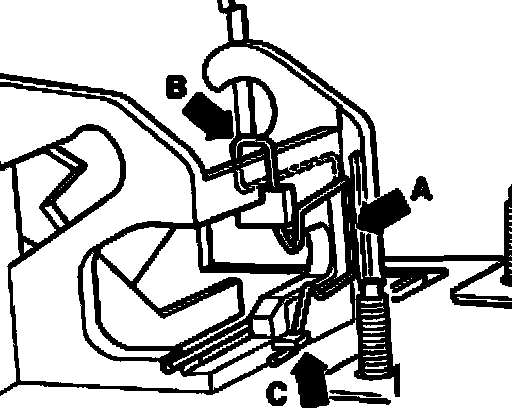

^ Insert spring - arrow B - from top and hook in at retaining clip - arrow C -.
^ Align spring so that it is seated evenly in groove - arrow A -.
^ Slightly lift spring at top - arrow B - and insert locking cable into selector mechanism.
^ Install center console and extension.
