Cover For Selector Mechanism, Disassembling and Assembling, Assembly Overview

Cover for selector mechanism, disassembling and assembling, assembly overview, 01V, 5 SPD. A/T (AWD)
Selector mechanism cover, removing and installing.

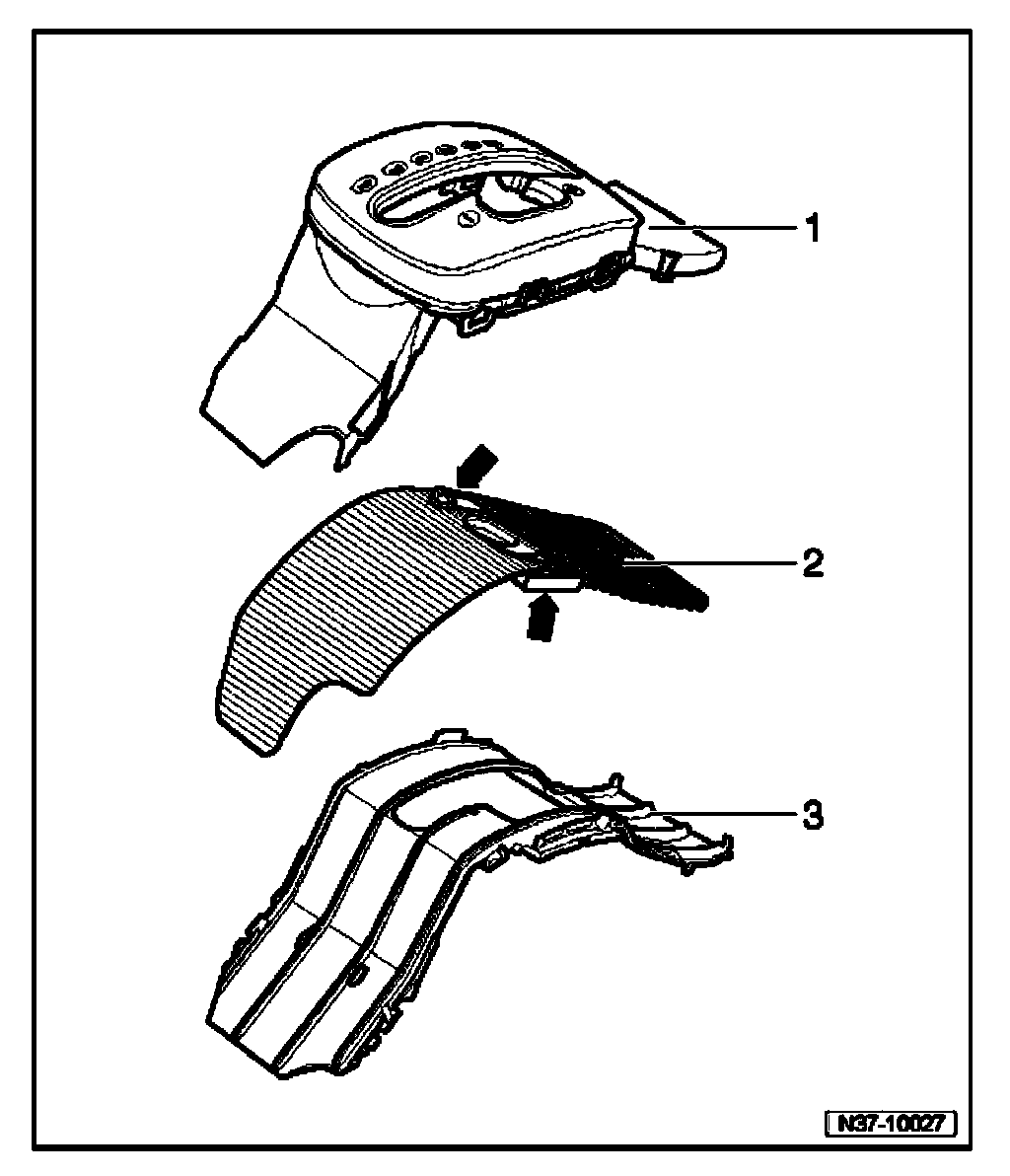

Cover for selector mechanism, disassembling and assembling.





1. Cover molding
^ with recess panel and symbol insert
^ can only be replaced as complete unit

2. Cover strip
^ with 2 magnets - arrows - for Tiptronic Switch F189 and gear display
^ Magnets must be secured firmly to cover strip

3. Guide
^ guides cover strip
