Cover For Selector Mechanism, Disassembling and Assembling

Cover for selector mechanism, disassembling and assembling, 01V, 5 SPD. A/T (AWD)

Disassembling
^ Remove cover.

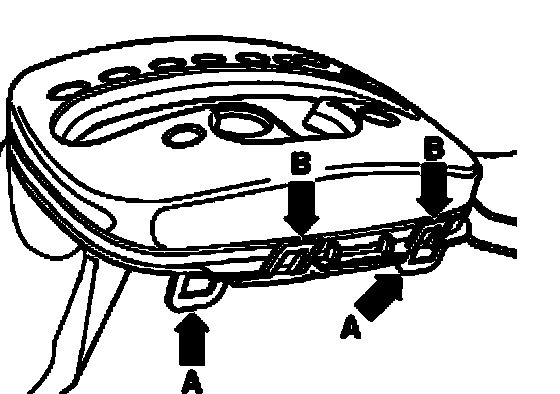

The four retaining straps - arrows B - for circuit board must not be pried off. Otherwise circuit board will be damaged.

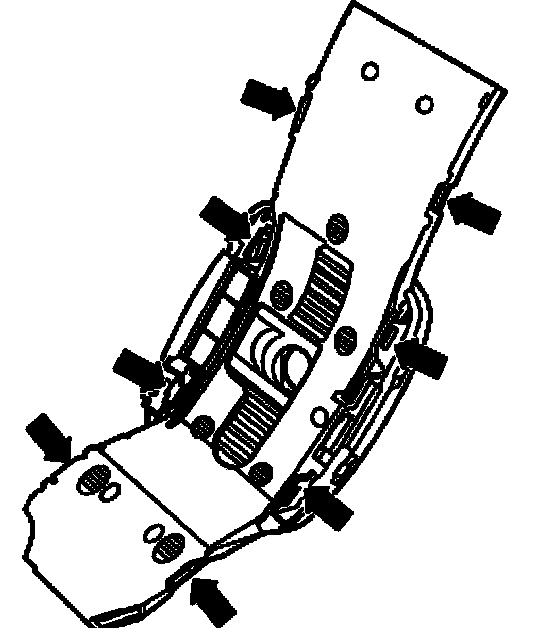

^ Carefully pry off retaining straps - arrows -.

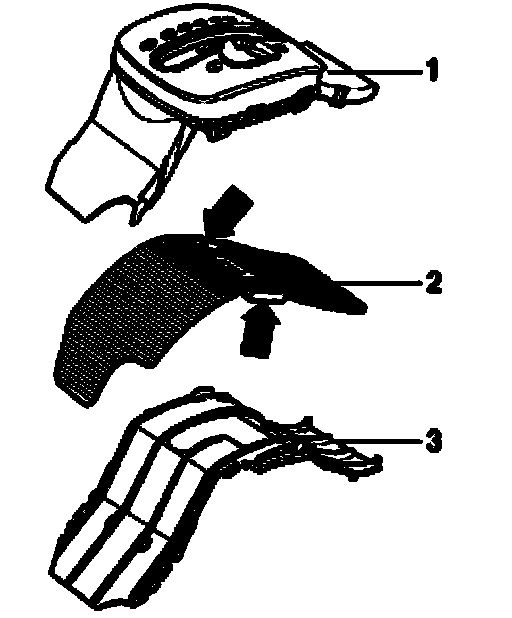

^ Remove cover strip - 2 - from guide - 3 -.

Assembling





^ Check whether magnets - arrows - are secured to cover strip - 2 -.

If this is not the case, cover strip must be replaced.

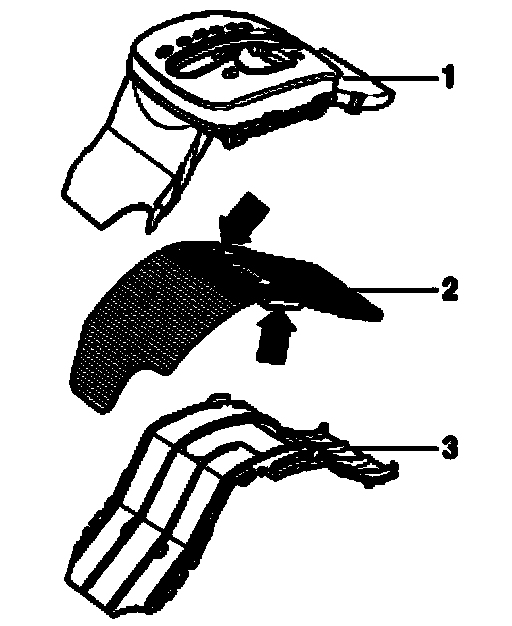

^ Insert cover strip - 2 - into guide - 3 -.

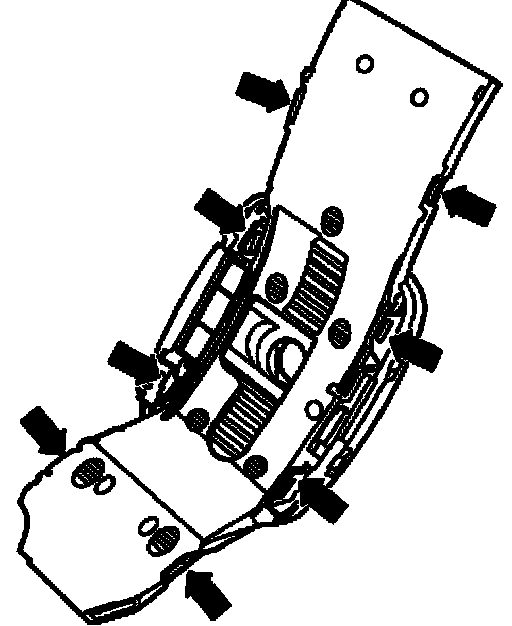

^ Place guide with cover strip on cover molding and carefully lock to each other - arrows -.

If retaining straps - arrows - are damaged, cover must be replaced completely.

^ Install cover.
