Home >> Volkswagen >> 2005 >> Passat Wagon 4Motion (3B6) L4-1.8L Turbo (AWM) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shift Interlock >> Testing and Inspection >> Ignition Key Removal Lock, Checking Function

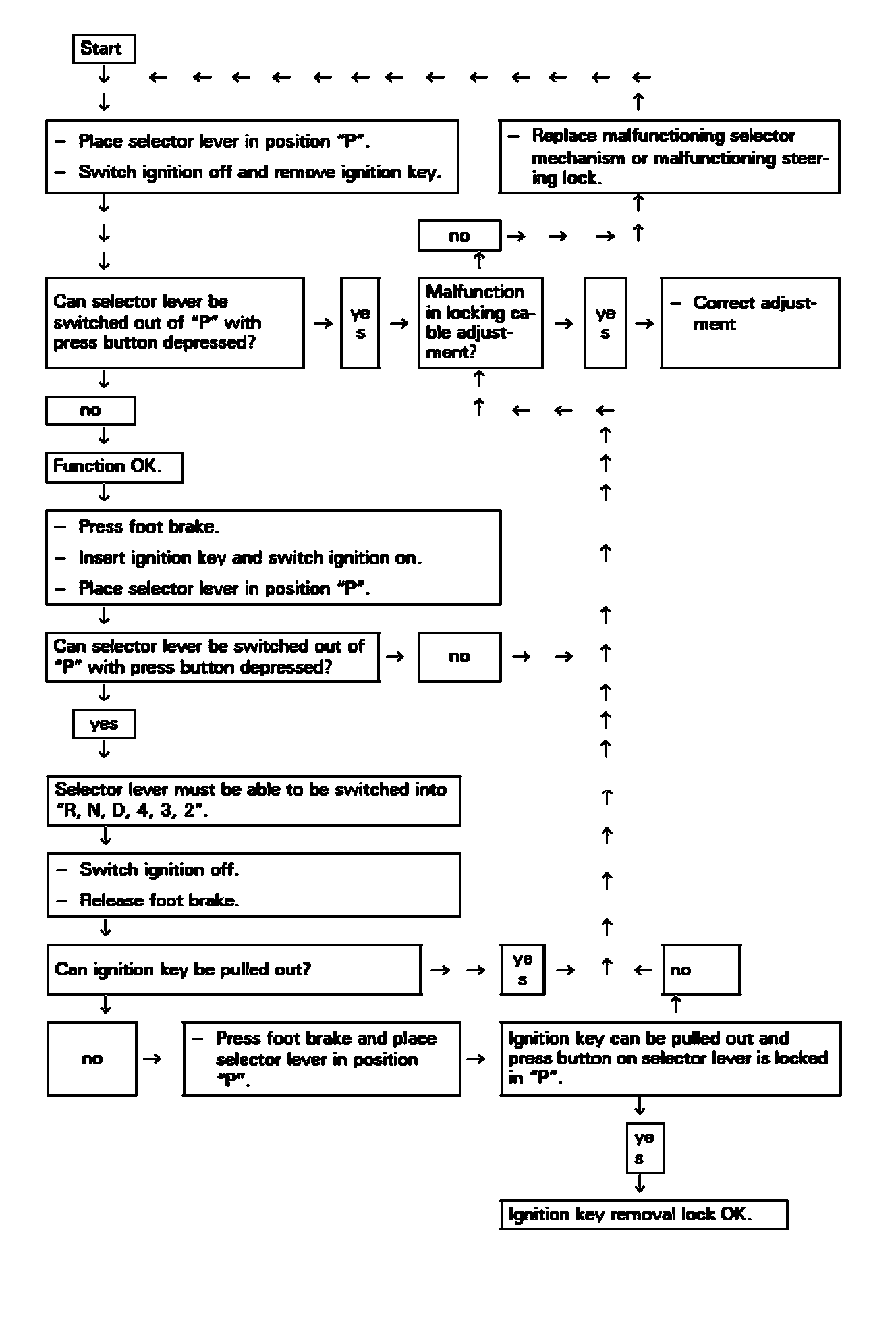

Ignition Key Removal Lock, Checking Function
