Tower "II", Disassembling

Tower "II", disassembling, 01V, 5 SPD. A/T





^ If not carried out yet, remove adjustment shim - 2 - from clutch "B" - 1 -.





^ Remove clutch "B" - 3 - and axial needle bearing - 2 - from clutch "A" - 1 -.

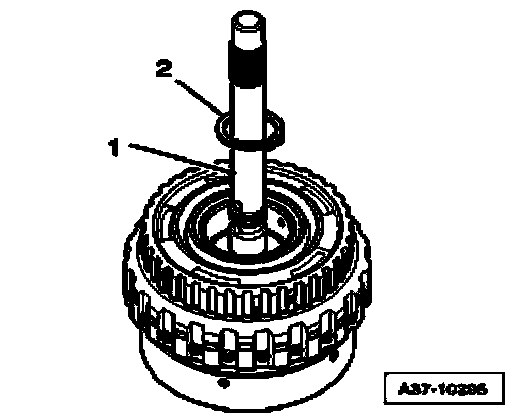

^ Remove circlip - 2 - from input shaft - 1 -.

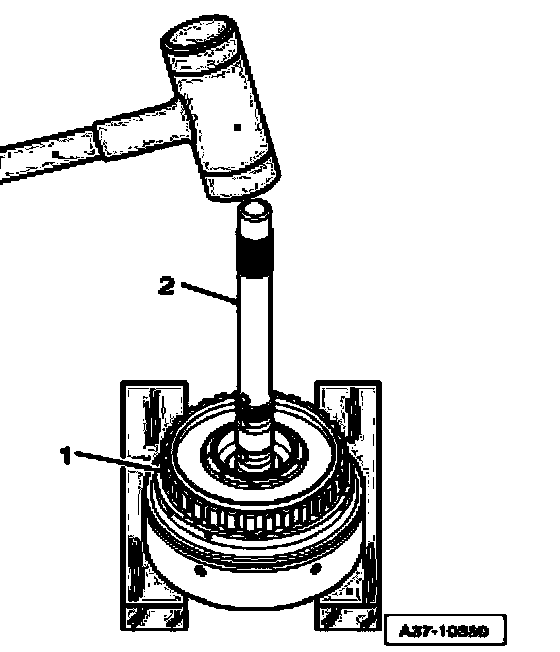

^ Place clutch "A" - 1 - with outer edges on 2 wood blocks, approximately 40 mm high.
^ Tap on input shaft - 2 - with clutch "E" using plastic hammer.
^ Remove clutch "A" from clutch "E".
