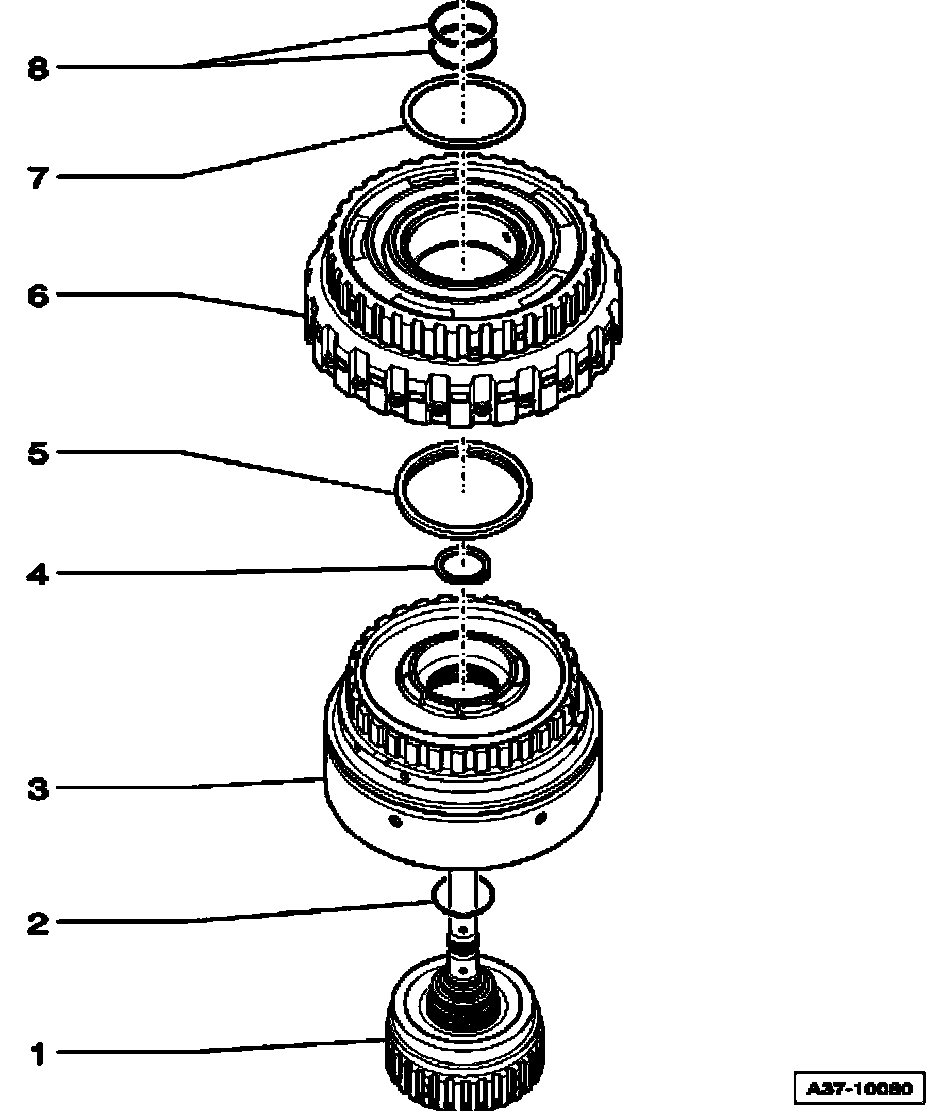

Tower "II", Assembly Overview

Tower "II", assembly overview, 01V, 5 SPD. A/T





1. Clutch "E"
2. O-ring
^ Replace

3. Clutch "A"
4. Circlip
5. Axial needle bearing
6. Clutch "B"
7. Adjustment shim
^ Determine

8. Rectangular rings
^ Replace
