Clutch "A", Assembly Overview

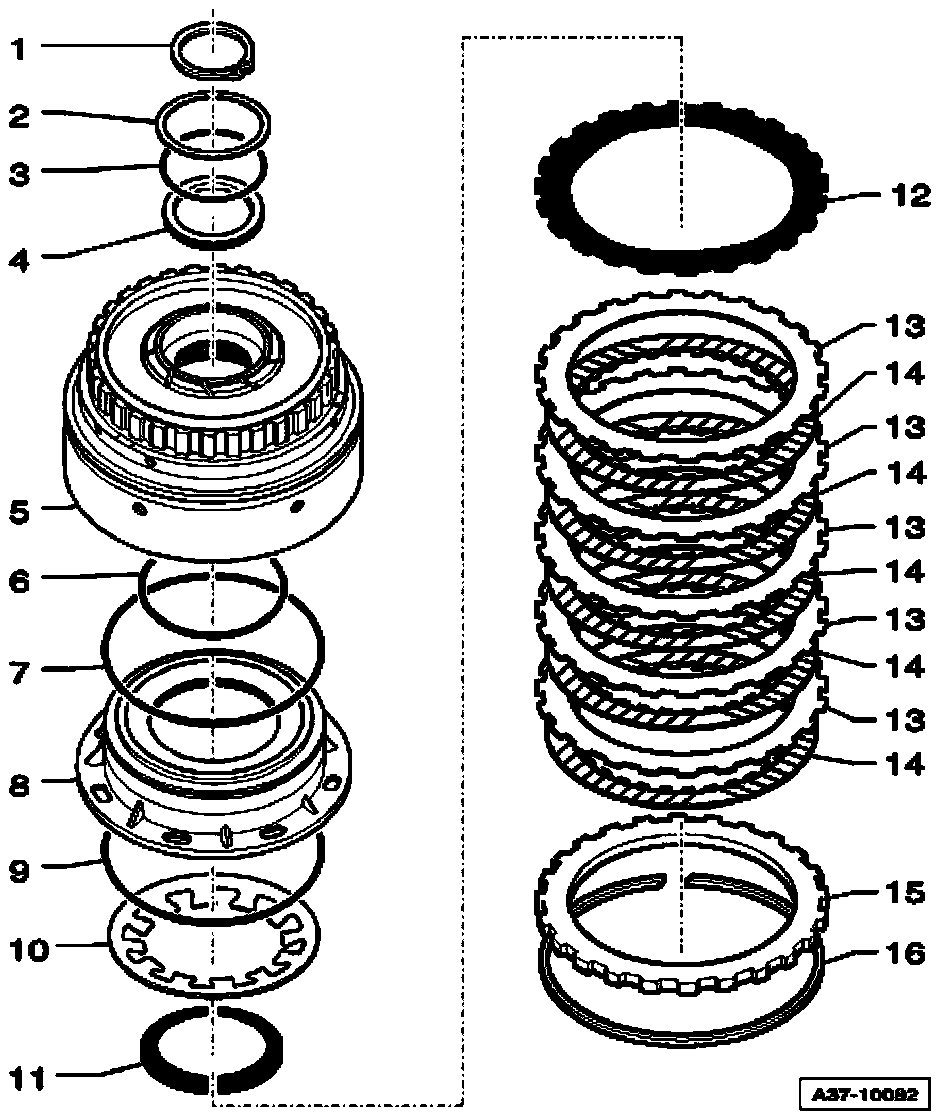

Clutch "A", assembly overview, 01V, 5 SPD. A/T

Note:
^ Some of the depicted components are part of component groups and are not available separately as replacement part.
^ Before assembling, check individual components of clutch "A" for wear and damage





1. Circlip
^ Replace
^ Do not over-stretch circlip when installing.

2. Adjustment shim
^ Determining thickness

3. O-ring
^ Replace

4. Ring
5. Cylinder "A"
6. O-ring
^ Replace

7. Green O-ring
^ Replace

8. Piston "A"
9. O-ring
^ Replace

10. Dished washer
11. Split retaining ring
^ Bent side at right angle faces dished washer

12. Wave washer
13. Outer plates
14. Coated plates
15. Thick outer plate
16. Circlip
^ Determining thickness
