Planetary Drive, Disassembling and Assembling

Planetary drive, disassembling and assembling, 01V, 5 SPD. A/T





Disassembling

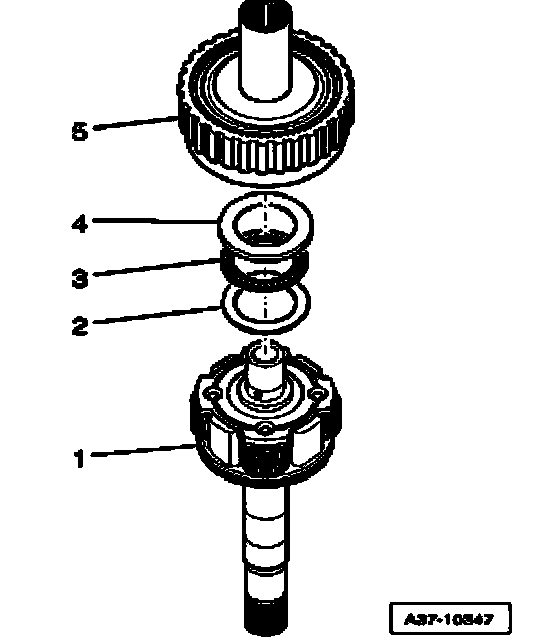

^ Remove ring gear "III" with shaft - 5 - from planetary carrier "III" - 1 -.
^ Remove angle washer - 4 -, axial needle bearing - 3 - and thrust washer - 2 -.

CAUTION: Before assembling, check individual components of planetary gear for wear and damage.

Assembling
^ Attach the following components onto shaft of planetary carrier "III" - 1 -.
2. Thrust washer
3. Axial needle bearing
4. Angle washer - angled edge points toward axial needle bearing
^ Attach ring gear "III" with shaft - 5 - onto planetary carrier "III" - 1 -.
