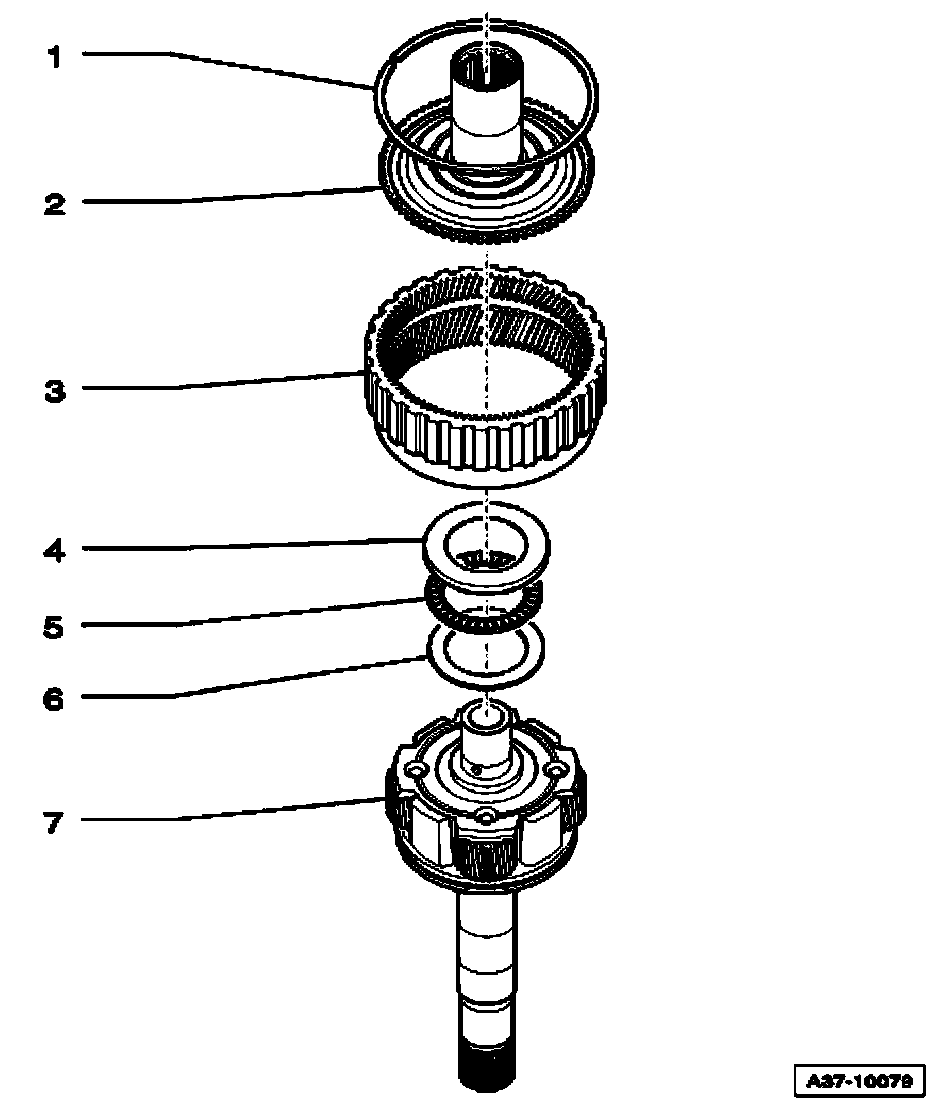

Planetary Drive, Assembly Overview

Planetary drive, assembly overview, 01V, 5 SPD. A/T

Note:
^ Some of the depicted components are part of component groups and are not available separately as replacement part.
^ Before assembling, check individual components of planetary gear for wear and damage.





1. Circlip
2. Shaft
3. Ring gear "III"
4. Angle washer
5. Axial needle bearing
6. Thrust washer
7. Planetary carrier "III"
