Clutch "F", Assembly Overview

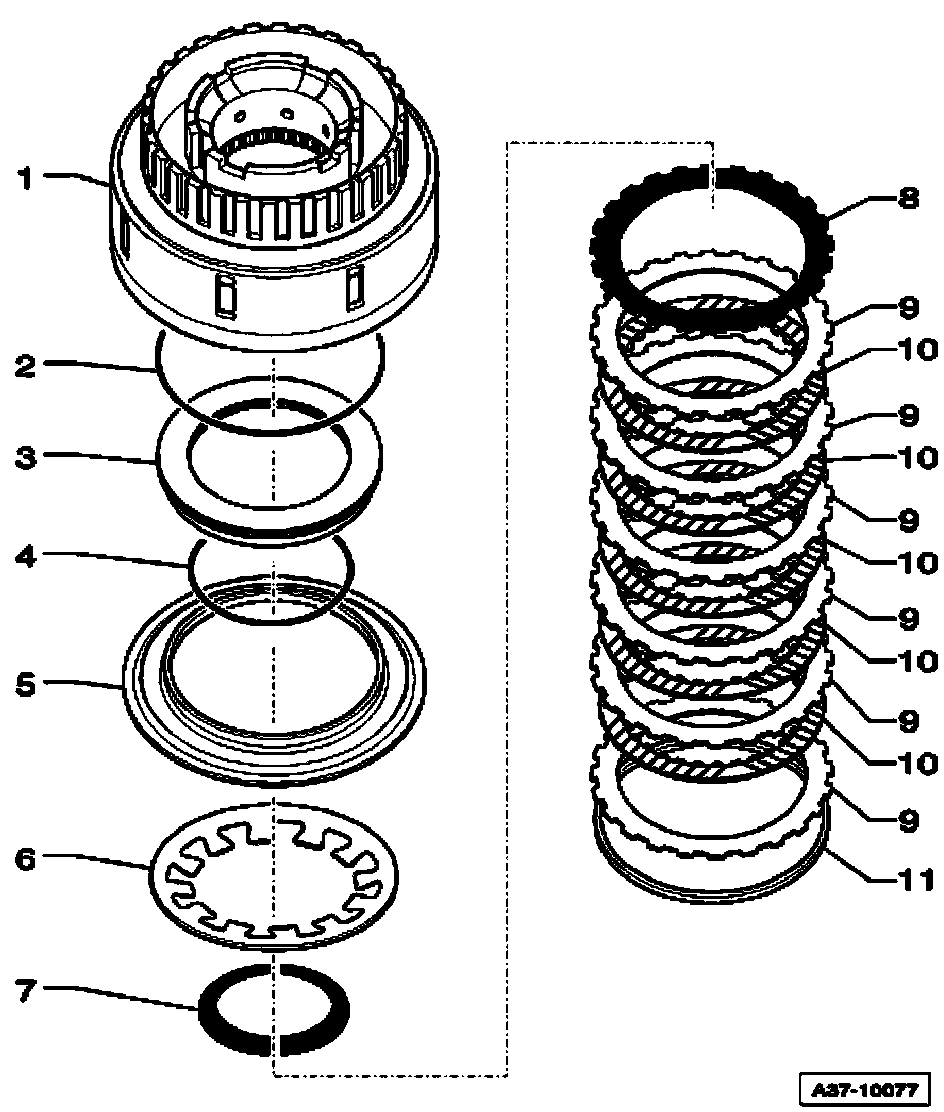

Clutch "F", assembly overview, 01V, 5 SPD. A/T

Note:
^ Clutch "F" is depicted in installed position.
^ Some of the depicted components are part of component groups and are not available separately as replacement part.
^ Before assembling, check individual components of clutch "F" for wear and damage.





1. Cylinder "F"
2. O-ring
^ Replace

3. Piston "F"
4. O-ring
^ Replace

5. Thrust piece
6. Dished washer
7. Split retaining ring
8. Wave washer
9. Outer plate
10. Coated plate
11. Circlip
