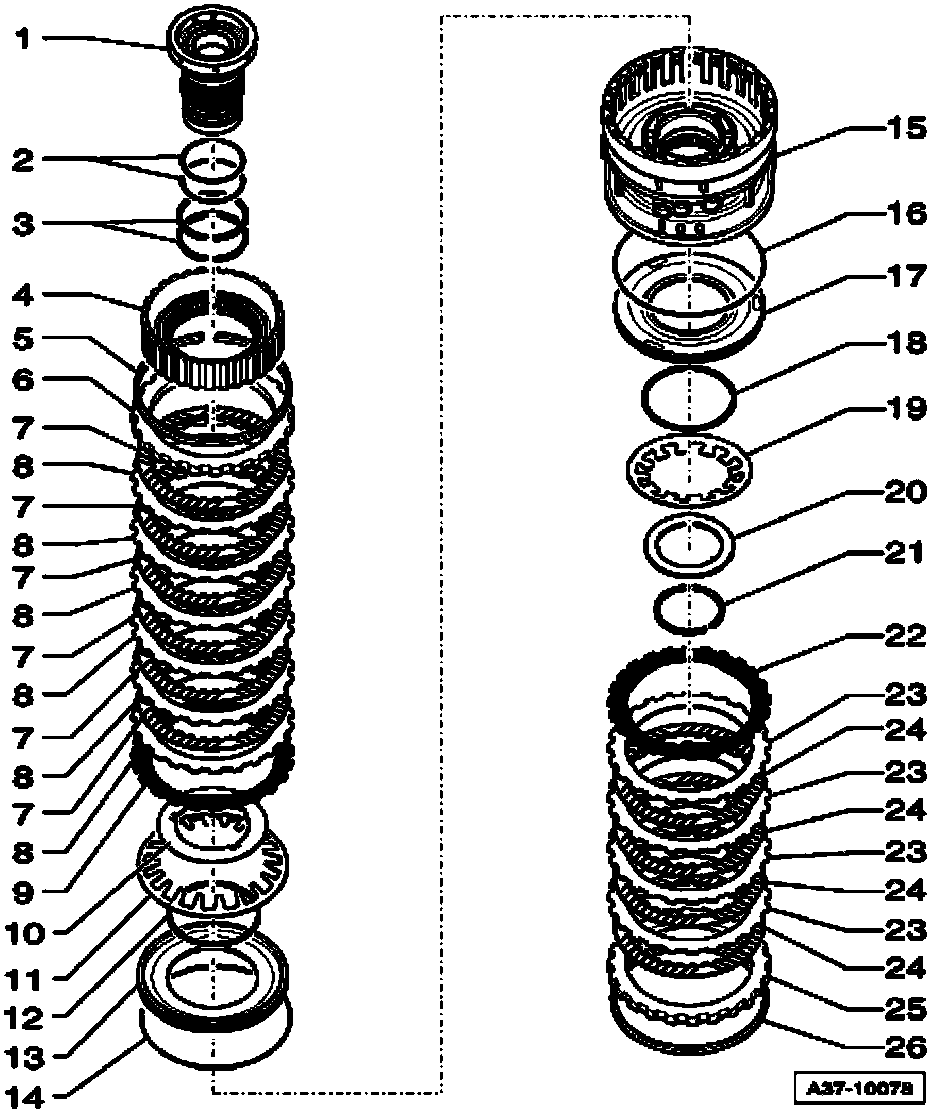

Clutch "D/G" With Freewheel, Assembly Overview

Clutch "D/G" with freewheel, assembly overview, 01V, 5 SPD. A/T

Note:
^ Some of the depicted components are part of component groups and are not available separately as replacement part.
^ Before assembling, check individual components of freewheel, clutch "D" or clutch "G" for wear and damage.





1. Freewheel inner race
2. O-rings
^ Replace

3. Rectangular rings
^ Replace

4. Freewheel with freewheel housing
5. Circlip
6. Thick outer plate
7. Coated plate
8. Outer plate
9. Wave washer
10. Holding plate
11. Dished washer
12. O-ring
^ Replace

13. Piston "D"
14. O-ring
^ Replace

15. Cylinder "D/G"
16. O-ring
^ Replace

17. Piston "G"
18. O-ring
^ Replace

19. Dished washer
20. Thrust washer
21. Circlip
22. Wave washer
23. Outer plate
24. Coated plate
25. Thick outer plate
26. Circlip
