Clutch "C", Assembly Overview

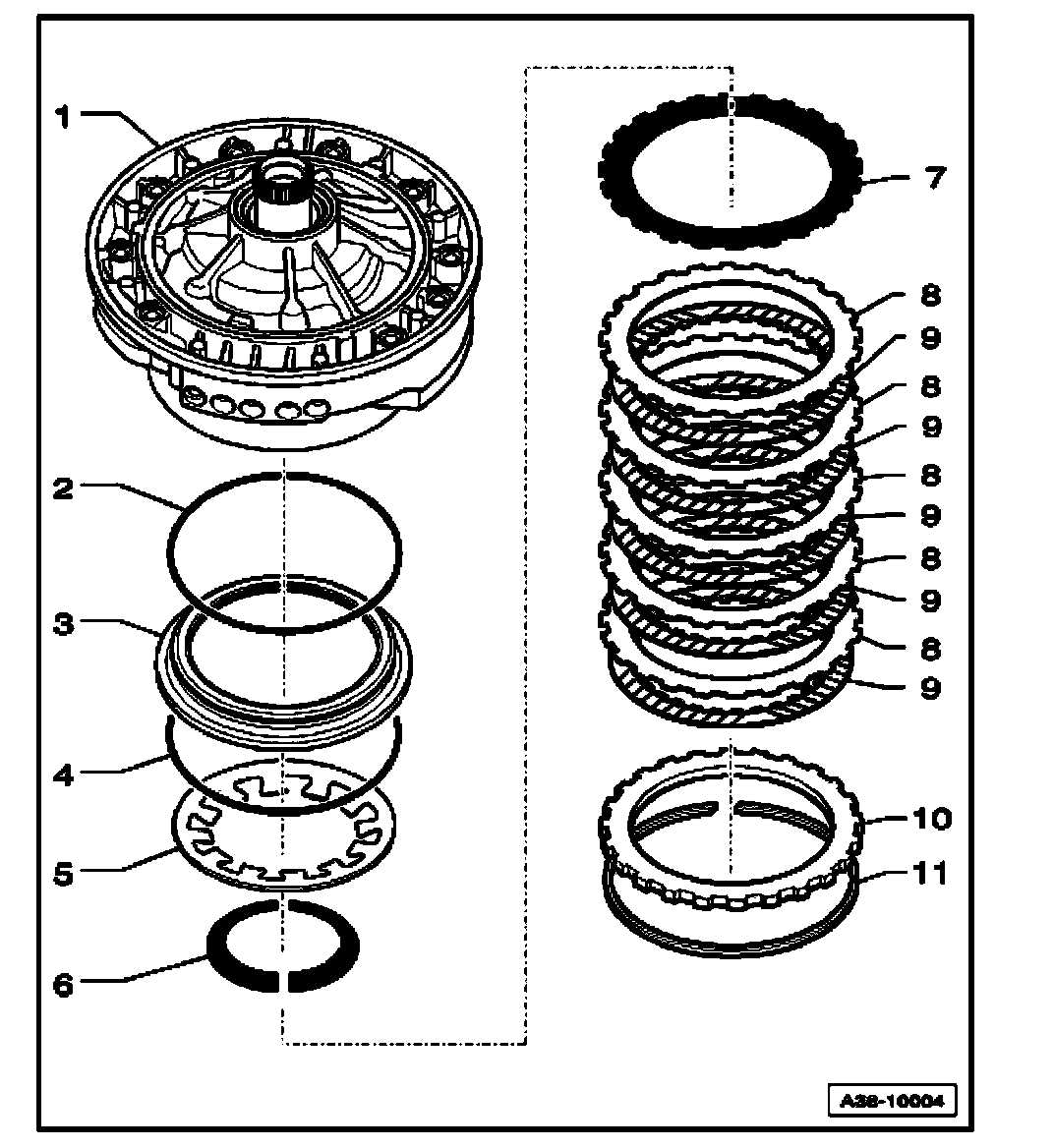

Clutch "C", assembly overview, 01V, 5 SPD. A/T

Note:
^ Some of the depicted components are part of component groups and are not available separately as replacement part.
^ Before assembling, check individual components of clutch "C" for wear and damage.





1. ATF pump
2. O-ring
^ Replace

3. Piston "C"
4. O-ring
^ Replace

5. Dished washer
6. Split retaining ring
7. Wave washer
8. Outer plates
9. Coated plates
10. Thick outer plate
11. Circlip
^ Determining thickness
