Transmission Vehicle Speed Sensor (VSS) G38 / Transmission Output Speed (RPM) Sensor G195, Replacing

Transmission Vehicle Speed Sensor (VSS) G38 / Transmission Output Speed (RPM) Sensor G195, replacing, 01V, 5 SPD. A/T (AWD)

Removing
^ Remove oil pan.

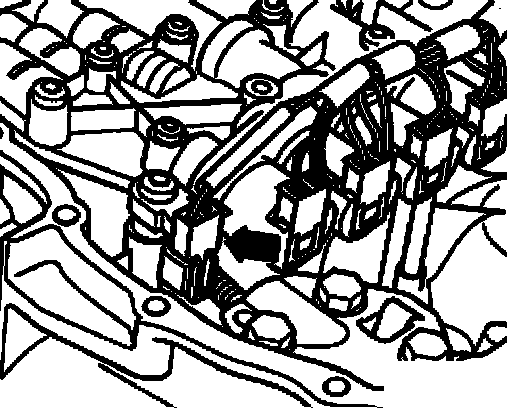

^ Disconnect connector - arrow - from Transmission Vehicle Speed Sensor (VSS).

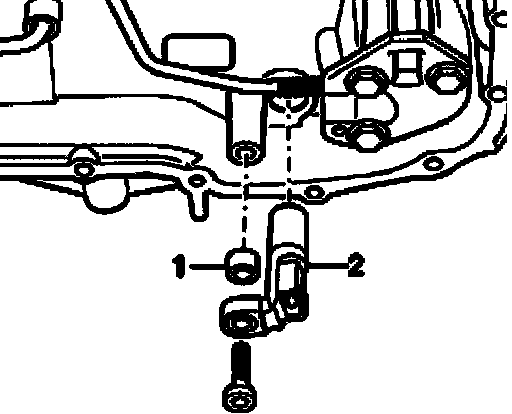

^ Remove Transmission Vehicle Speed Sensor (VSS) - 2

Installing

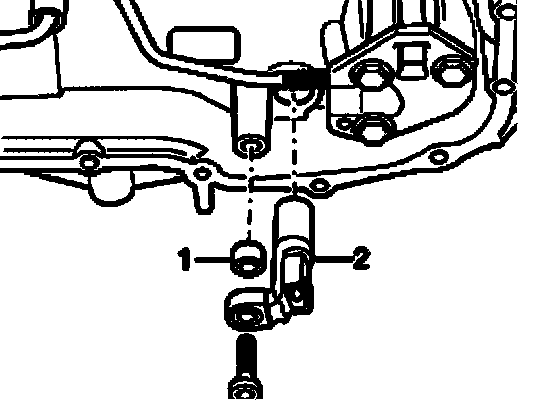

^ Install Transmission Vehicle Speed Sensor (VSS) - 2 - using spacer sleeve - 1 - (height: 8 mm) and tighten to tightening torque

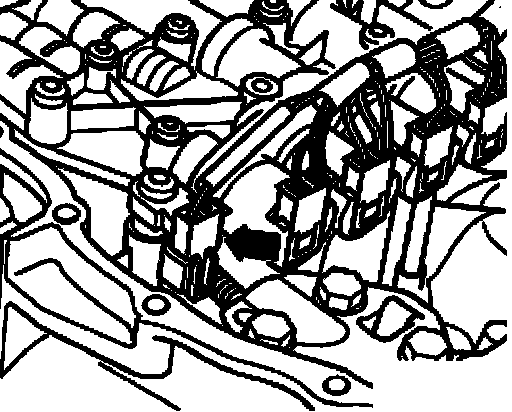

^ Connect connector - arrow - to Transmission Vehicle Speed Sensor (VSS).
^ Install oil pan.
^ Add ATF, check ATF level and top off.
