Transmission Input Speed (RPM) Sensor G182

Transmission Input Speed (RPM) Sensor G182, 01V, 5 SPD. A/T (AWD)

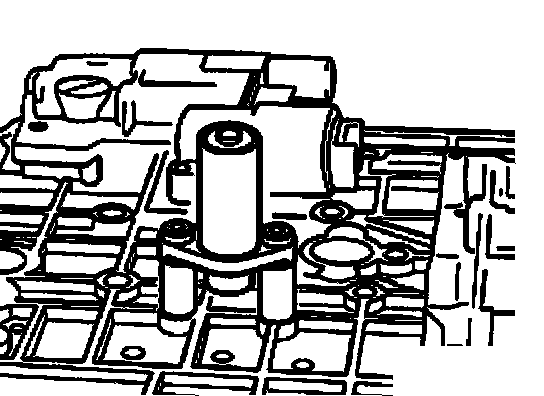

Installation location: Sensor for transmission RPM is located on underside of valve body for transmissions with hydraulic control E17. Sensor is an inductive sensor for these transmissions.

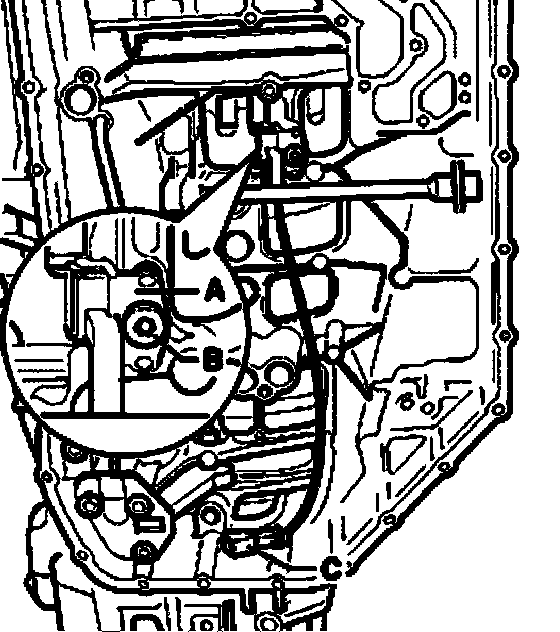

Sensor for transmission RPM - A - is secured behind valve body on transmission housing for transmissions with hydraulic control E18/2. Sensor is a hall effect sensor for these transmissions.
