ATF Lines, Removing and Installing

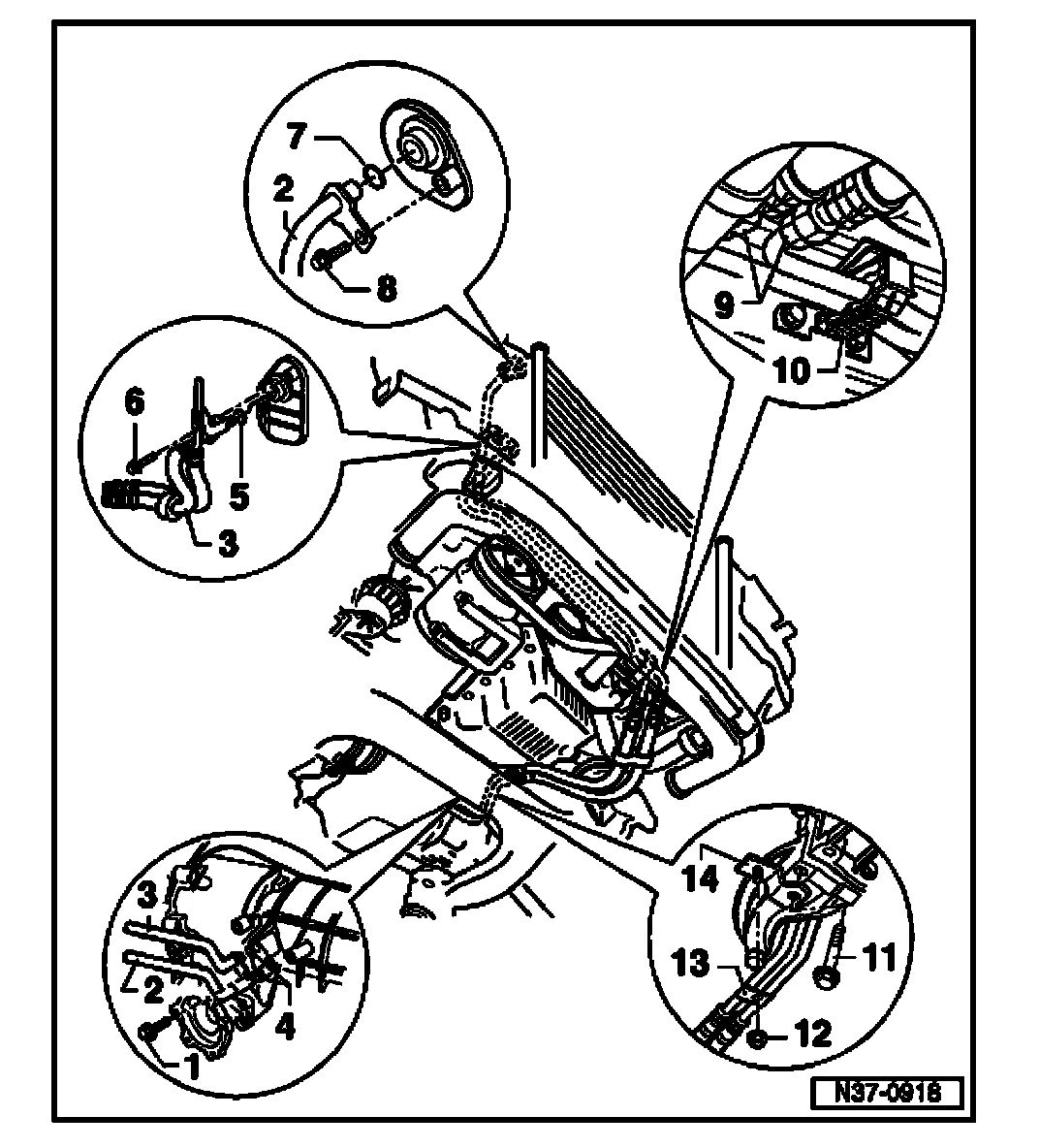

ATF lines, removing and installing (vehicles with 4-cylinder engine), 01V, 5 SPD. A/T (AWD)





1. Hex bolt, 20 Nm
^ before tightening bolt, push in line onto stop by hand

2. ATF line
^ to cooler
^ Pay attention to label on transmission housing

3. ATF line
^ From cooler
^ Pay attention to label on transmission housing

4. O-ring
^ Insert with ATF
^ Always replace

5. O-ring
^ Insert with ATF
^ Always replace

6. Hex bolt, 5 Nm
^ before tightening bolt, push in line onto stop by hand

7. O-ring
^ Insert with ATF
^ Always replace

8. Hex bolt, 5 Nm
^ before tightening bolt, push in line onto stop by hand

9. Union nut, 30 Nm
10. Bracket
11. Hex bolt
^ does not require removal when removing and installing ATF lines.

12. Hex nut, 5 Nm
13. Clamp
14. Bracket
^ on engine/transmission support
