Fluid Filter - A/T: Service and Repair

ATF strainer, removing and installing, 01V, 5 SPD. A/T (AWD)

Removing
^ Remove oil pan.

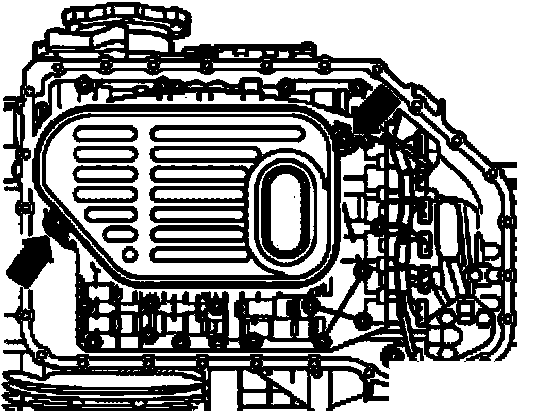

^ Remove bolts - arrows - for oil strainer.
^ Pull off oil strainer from valve body.

Installing
^ Coat seal on strainer suction collar with ATF.
^ Carefully press suction collar into the opening at valve body up to stop.
^ Tighten bolts.
^ Install oil pan.
^ Add ATF, check ATF level and top off.
