Electrical/Electronic Components and Installation Locations

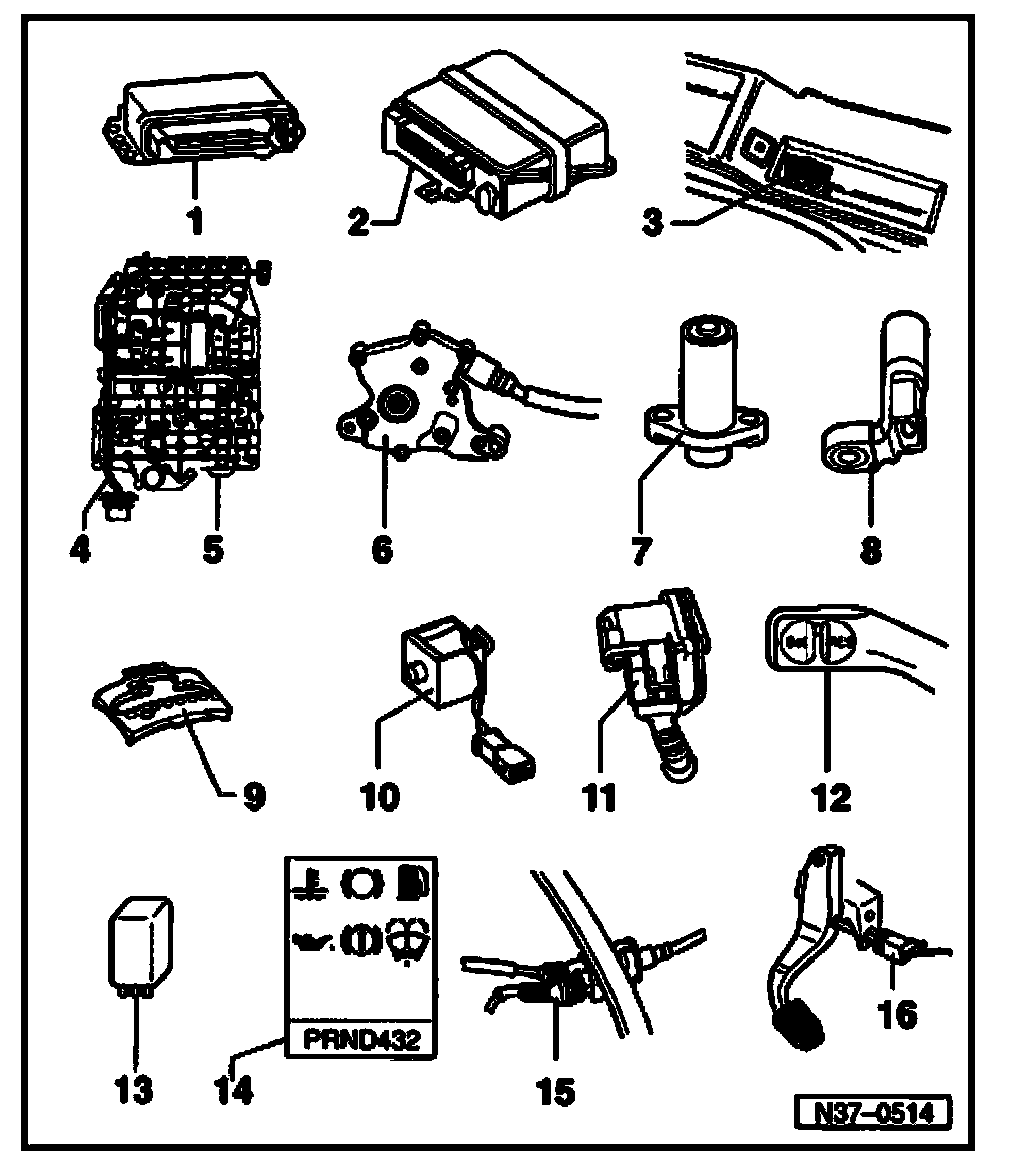

Electrical/electronic components and installation locations, 01V, 5 SPD. A/T (AWD)





1. Transmission Control Module (TCM) J217
^ Installation location
^ Removing
^ Installing
^ can be checked in "Guided Fault Finding" using the VAS5051 A

2. Engine Control Module (ECM)
^ Component location, removing and installing

3. Data Link Connector (DLC)
^ Component location in vehicles up to 09.00
^ Component location in vehicles as of 10.00

4. Wiring harness with Transmission Fluid Temperature Sensor G93
^ Installation location
^ can be checked in "Guided Fault Finding" using the VAS5051 A

5. Valve body
^ Installation location
^ with hydraulic control E17 or E18/2
^ Components can be checked in "Guided Fault Finding" using the VAS5051 A

6. Multi-Function Transmission Range (TR) Switch F125
^ Installation location
^ can be checked in "Guided Fault Finding" using the VAS5051 A

7. Transmission Input Speed (RPM) Sensor G182
^ calculates transmission input RPM
^ Installation location
^ can be checked in "Guided Fault Finding" using the VAS5051 A

8. Transmission Vehicle Speed Sensor (VSS) G38 / Transmission Output Speed (RPM) Sensor G195
^ calculates transmission output RPM
^ Installation location
^ can be checked in "Guided Fault Finding" using the VAS5051 A

9. Tiptronic Switch F189
^ Installation location
^ can be checked in "Guided Fault Finding" using the VAS5051 A

10. Shift Lock Solenoid N 110
^ Installation location
^ can be checked in "Guided Fault Finding" using the VAS5051 A

11. Throttle Position (TP) Sensor G69 / Throttle Position (TP) Sensor G79 and Accelerator Pedal Position Sensor 2 G185
^ Further information
^ can be checked in "Guided Fault Finding" using the VAS5051 A

12. Cruise Control Switch E45
^ Installation location
^ can be checked in "Guided Fault Finding" using the VAS5051 A

13. Starting Interlock Relay J207
^ Installation location

14. Transmission Range (TR) Display Y6
^ Installation location
^ Simultaneous lighting of all segments of selector lever position display or
^ no selector lever position display indicates transmission in emergency running mode

15. Kick Down Switch F8
^ Component location in vehicles without EPC
^ Component location in vehicles with EPC
^ can be checked in "Guided Fault Finding" using the VAS5051 A

16. Brake Light Switch F / Brake Pedal Switch F47
^ Component location, removing and installing
^ can be checked in "Guided Fault Finding" using the VAS5051 A
