Shock Absorber For Vehicles With Steel Wheel Bearing Housings, Removing and Installing (AWD)

Shock absorber for vehicles with steel wheel bearing housings, removing and installing
^ Remove wheel.

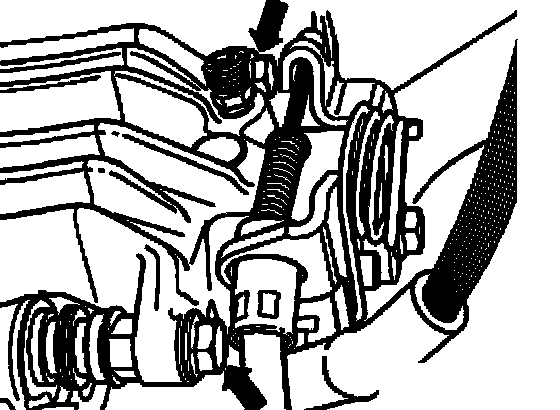

^ Remove securing bolts - arrows - from brake caliper housing, while counter-holding on guide pins.
^ Remove brake caliper housing and secure with wire so that the weight of the brake caliper does not stress or damage the brake hose.

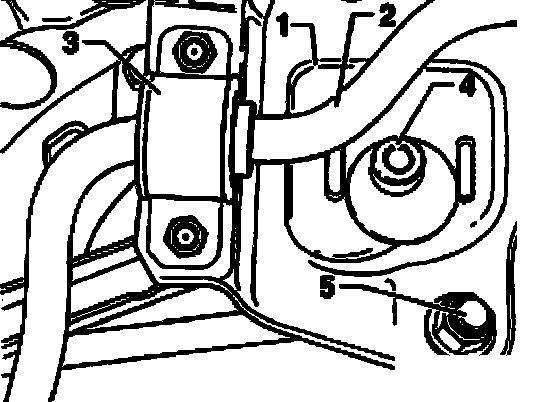

^ Remove clamp - 3 - for stabilizer bar - 2

1. Axle beam
4. Eccentric bolt

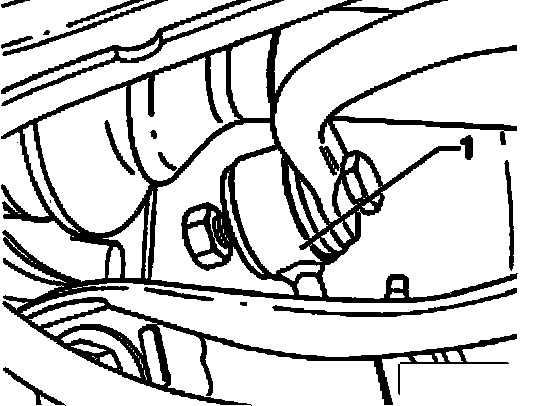

^ Remove coupling link - 1 - from stabilizer bar.

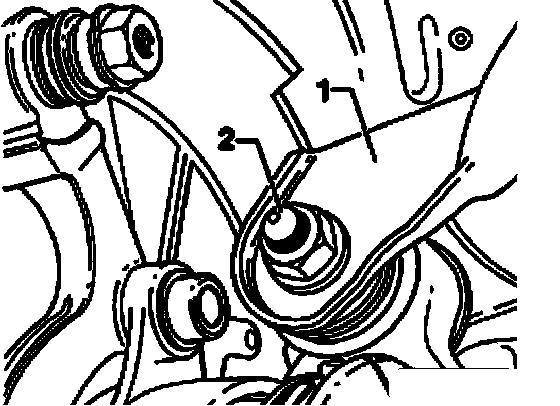

^ Remove bolt - 2 - for control arm - 1 -.

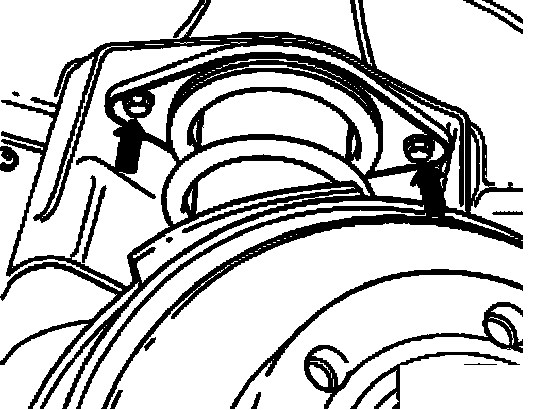

^ Remove shock absorber hex bolts - arrows - from body.

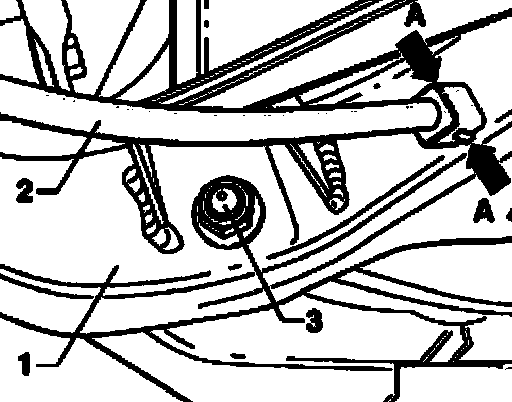

^ Remove shock absorber bolt - 3 - from control arm - 1 - and remove shock absorber.
- To remove shock absorber pull wheel bearing housing lightly downward.

Installing

Further installation is in reverse sequence of removal.
^ Install wheel and tighten.
