Left Rear Level Control System Sensor G76 on Rear Axle, Vehicles With All Wheel Drive

Left rear level control system sensor G76 on rear axle, vehicles with all wheel drive
General notes Level control system sensor in vehicles with automatic headlight range control - general information

Basic setting of headlights Perform basic setting in "Guided fault finding" with the VAS 5051.

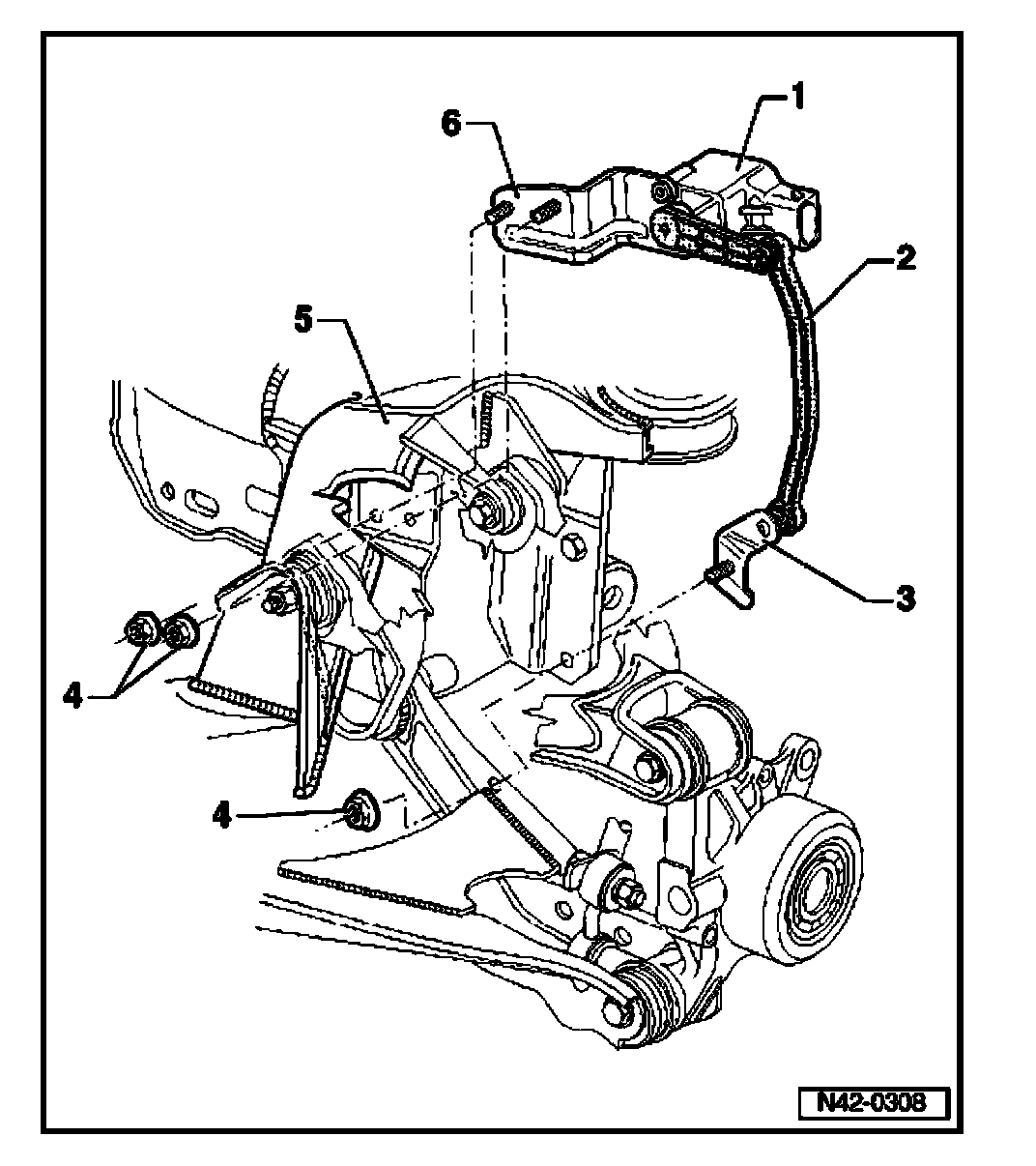

1. Left rear level control system sensor G76
^ Check electrically using On Board Diagnostics (OBD)
^ If there are complaints Perform basic setting in "Guided fault finding" with the VAS 5051.

2. Connecting link for left rear level control system sensor G76
^ Do not remove connecting link from ball joint!

3. Bracket
4. Self-locking hex nut, 10 Nm
^ Replace each time

5. Subframe
6. Bracket
