Left Front Level Control System Sensor G78 on Front Axle

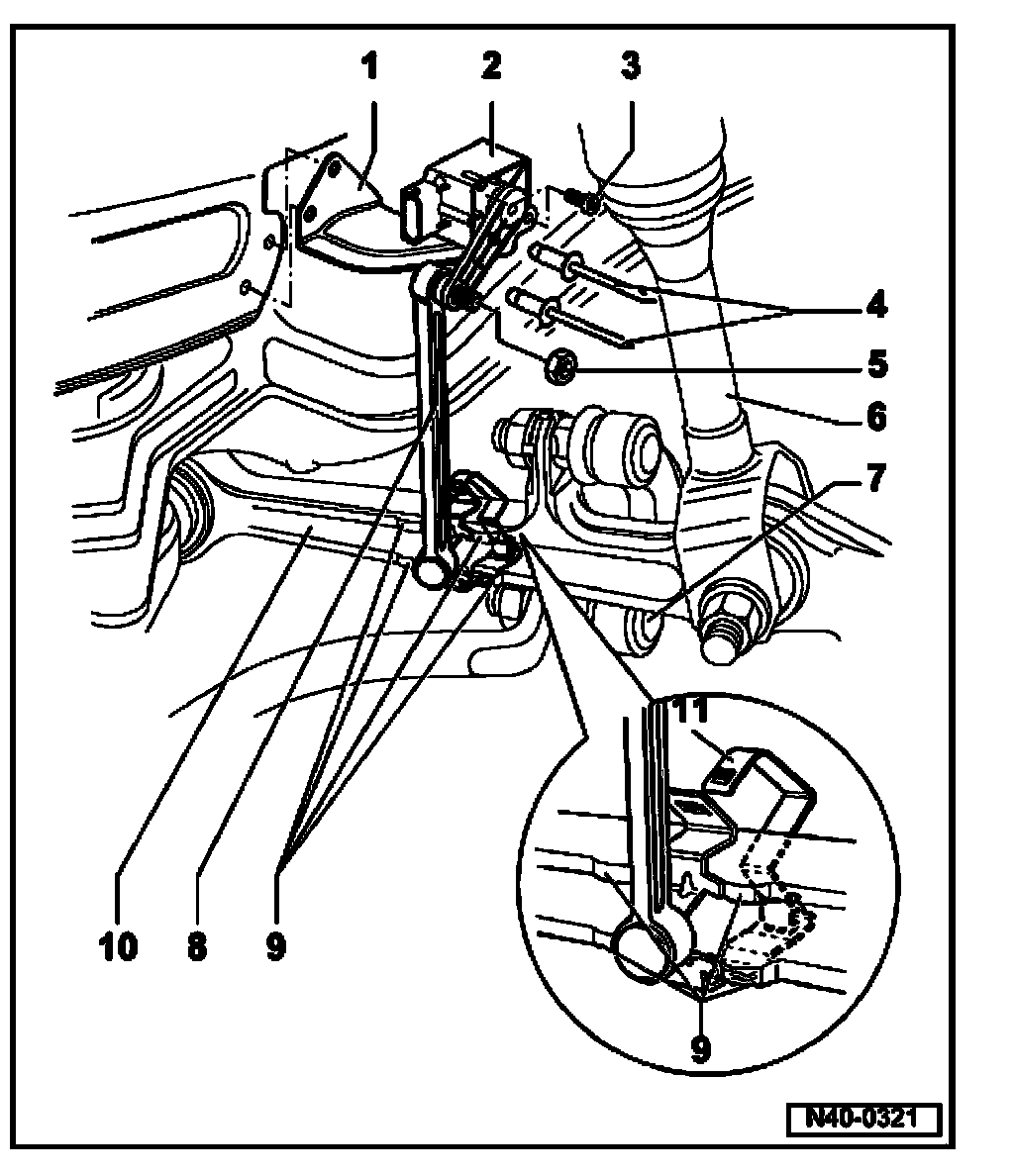

Left front level control system sensor G78 on front axle
General notes Level control system sensor in vehicles with automatic headlight range control - general information

Headlights basic settings Perform basic setting in "Guided fault finding" with the VAS 5051.





1. Bracket
2. Left front level control system sensor G78
^ Check electrically using On Board Diagnostics (OBD)
^ If there are complaints Perform basic setting in "Guided fault finding" with the VAS 5051.

3. Hex socket head bolt, 10 Nm
4. Rivet
5. Self-locking hex nut, 10 Nm
^ Replace each time

6. Suspension strut
7. Stabilizer bar connecting link
8. Connecting link for left front level control system sensor G78
^ Do not remove connecting link from ball joint!

9. Position marking on lower control arm for installation of left front level control system sensor G78
10. Lower control arm
11. Clip
^ Pry off with flat-head screwdriver
