Coupling rod for stabilizer bar, removing and installing

Removing
^ Remove wheel.

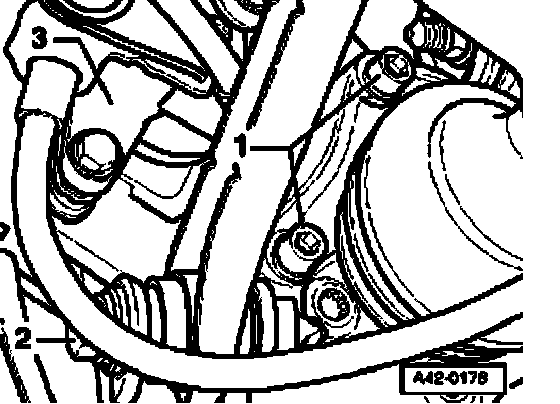

^ Remove securing bolts - 1 - from brake caliper.

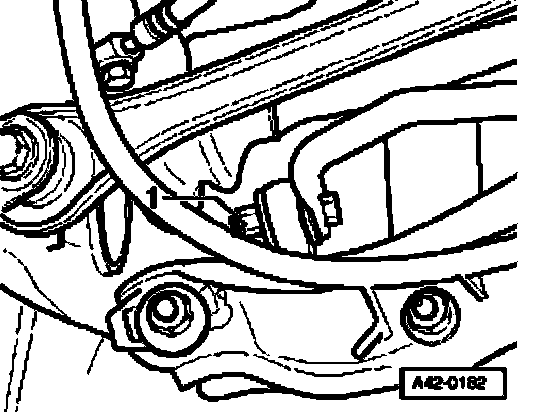

^ Remove connecting link from stabilizer bar.

1. Hex nut

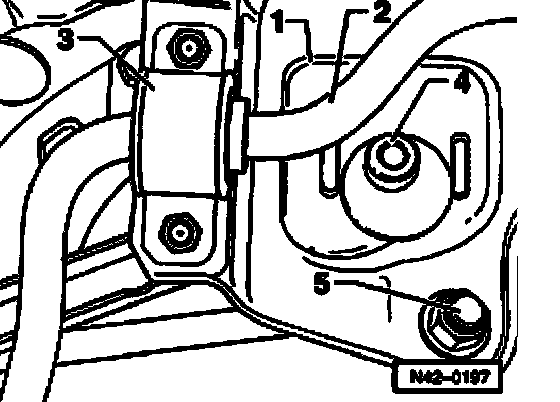

^ Remove clamp - 3 -for stabilizer bar - 2 -.
1. Subframe
4. Eccentric bolt

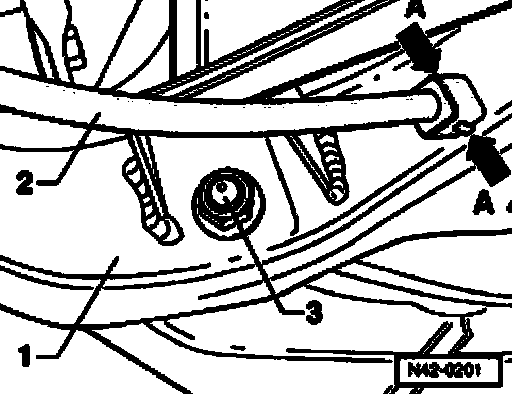

^ Remove shock absorber bolt - 3 - from lower control arm.
1. Control arm
2. Parking brake cable
3. Shock absorber bolt
A. Parking brake cable retaining clip

^ Pull wheel bearing housing with lower control arm downward.

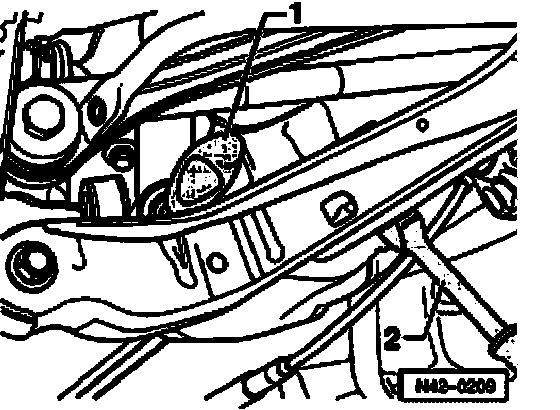

^ Insert a punch - 1 - or similar through shock absorber bushing hole.
^ Remove lower hex bolt for coupling rod.

Installing
Installation is carried out in reverse sequence.
^ Install wheel and tighten.
